Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2194998N Freezer, Door Panel (also Order Item 11) Appelez-nous -
3 2194767N Handle Appelez-nous -
4 939886 Cap, Hinge Sleeve Appelez-nous -
5 1119359 End Cap Appelez-nous -
6 489022 Screw Appelez-nous -
7 2194770 Insert Retainer (bottom) Appelez-nous -
8 1117767 Retainer, Gasket Appelez-nous -
9 489075 Screw Appelez-nous -
10 2188405A Door Gasket, Magnetic   (Replaces: 1129267) Special Order $ 368.63

11 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
12 WP939101 Screw Anchor (3)   (Replaces: 939101) Special Order $ 7.88

13 1125649 Panel, Interior Door Appelez-nous -
14 2170705 Trim, Door Shelf (4) Appelez-nous -
15 WP489069 Screw   (Replaces: 489101) In-Stock Immediately $ 8.40

16 2147080 Tube, Water Line Appelez-nous -
17 2198421 Harness, Door Appelez-nous -
18 2170582 Trim, Door Shelf Appelez-nous -
19 WP489128 Screw   (Replaces: 488500) Special Order $ 11.40

20 2198196 Tube, Door Wiring Appelez-nous -
21 2198369 Clip Appelez-nous -
22 1115206 Insulation, Dispenser Appelez-nous -
23 987188 Chute, Ice Appelez-nous -
24 2155335 Tap, Plate Appelez-nous -
25 4318165 Door Closer, Upper Cam   (Replaces: 2182132) In-Stock Immediately $ 29.74

26 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

27 WP999367 Screw   (Replaces: 489367) Special Order $ 8.56

28 2195950 Bracket, Door Stop Special Order $ 5.84

29 935075 Shim Appelez-nous -
30 WP489463 Screw   (Replaces: 489463) Special Order $ 8.25

31 2194773N Insert, Bottom Appelez-nous -
32 1117766 Retainer, Gasket Special Order $ 36.55

33 2194771 Insert Retainer (top) Appelez-nous -
34 2194774N Insert, Top Appelez-nous -
35 2156220 End Cap Appelez-nous -
36 WP2154473 Connector   (Replaces: 2154473) Special Order $ 24.83


    View Diagram in Separate Window     Print Icon   Print Part List

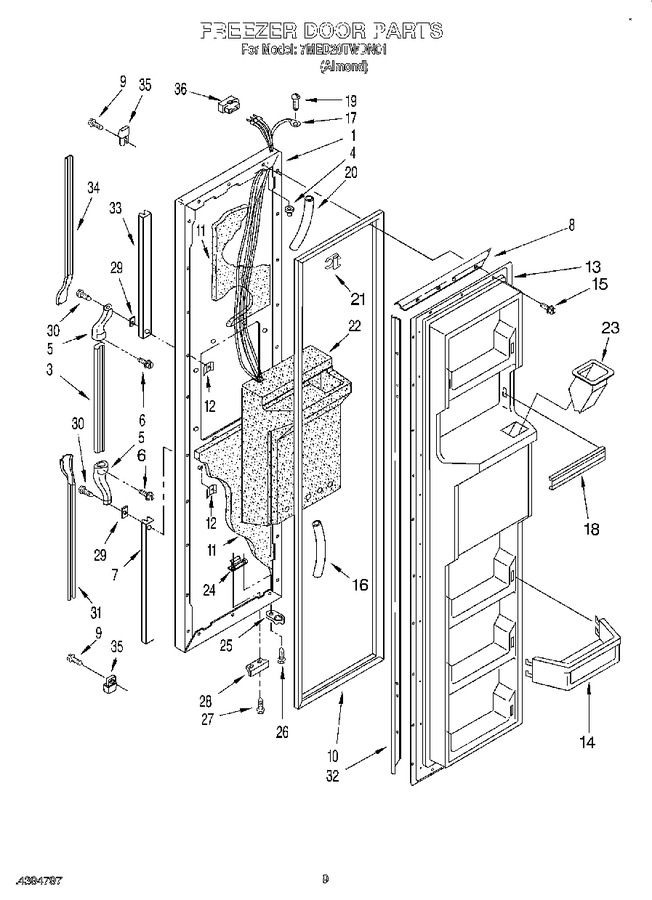

Diagram for 7MED20TWDN01
