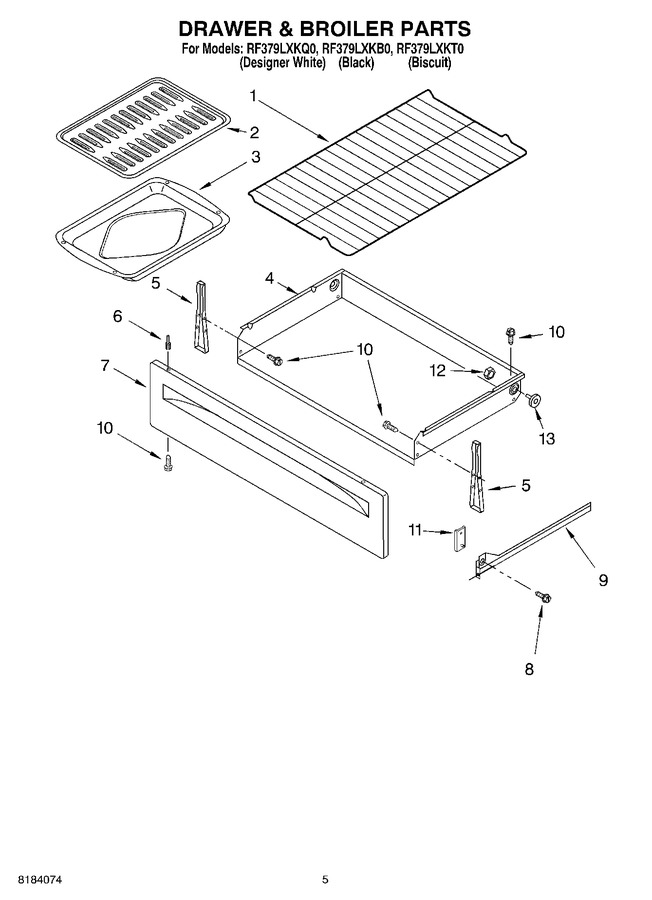

01 - Cooktop, Literature
02 - Control Panel
03 - Chassis
04 - Drawer & Broiler
05 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 52.19 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 88.79 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 297.32 | |||||
| 4 | 8272605 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer (2) (Replaces: 3196816) |
|
Immediately | $ 80.06 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 9.96 | ||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 10.08 | ||||
| 6 | 3196815 | Rivet, Push (2) (biscuit) |
|
- | |||||
| 7 | W11230476 | Panel, Drawer Front (biscuit) (Replaces: 8272501) |
|
$ 185.42 | |||||
| 7 | W11230488 | Panel, Drawer Front (black) (Replaces: 8053341) |
|
$ 191.20 | |||||
| 7 | W11219377 | Panel, Drawer Front (white) (Replaces: 8053339) |
|
$ 191.31 | |||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 9 | 8274191 | Rail, Drawer (2) |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 11 | 8522669 | Spacer, Drawer |
|
- | |||||
| 12 | WP487939 | Nut (Replaces: 487939) |
|
$ 7.76 | |||||
| 13 | 814229 | Roller (Replaces: 9751138) |
|
Immediately | $ 63.42 |
