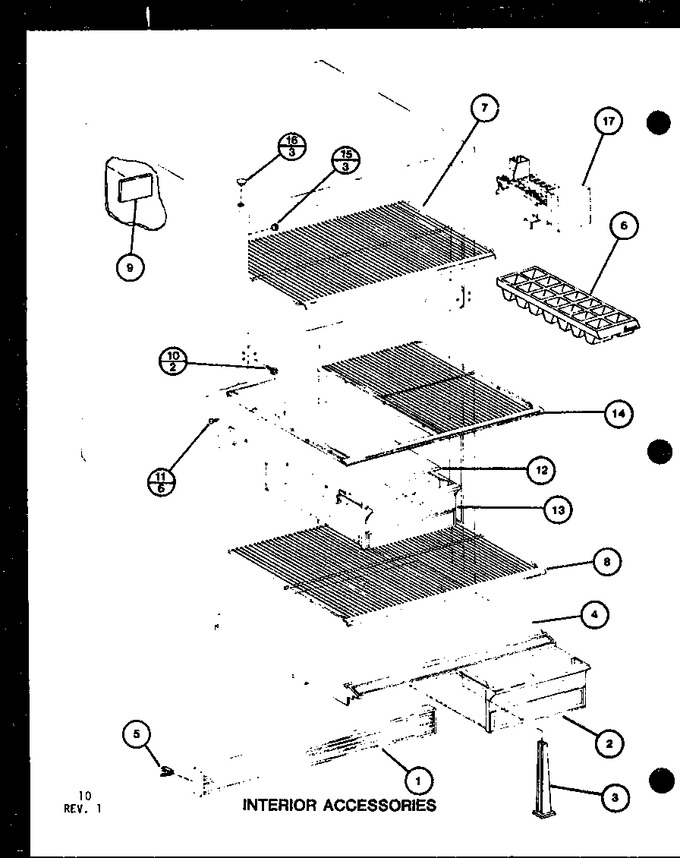

03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts
06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520502 | Grille-toe |
|
- | |||||
| 2 | D7581002 | Net Crisper Pan |
|
- | |||||
| 3 | D7602202 | Crisper Support Post |
|
- | |||||
| 4 | D7616503 | Top Crisper |
|
- | |||||
| 5 | M0117301 | Clip, Grille |
|
- | |||||
| 6 | WP841180A | Tray, Ice (Replaces: C8717801) |
|
Immediately | $ 43.06 | ||||
| 7 | D7580701 | Shelf, Fz |
|
- | |||||
| 8 | D7583801 | Shelf Wire K |
|
- | |||||
| 9 | D7604903 | Cover-fl Tb/plug |
|
- | |||||
| 10 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| 11 | M0210418 | Screw |
|
- | |||||
| 12 | D7698201 | Top M.k |
|
- | |||||
| 13 | D7698303 | Pan M.k |
|
- | |||||
| 14 | D7584201 | Shelf, Wire M K |
|
- | |||||
| 15 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 7.39 | ||||
| 16 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 7.39 | ||||
| 16 | M0310720 | Plug |
|
- | |||||
| 16 | M0310716 | Plug |
|
- | |||||
| 17 | Y00000000 | See Note Model Ic3, Mfg. No. P76213-1w Add-on Ice Maker -- (available From Sales) |
|
- |
