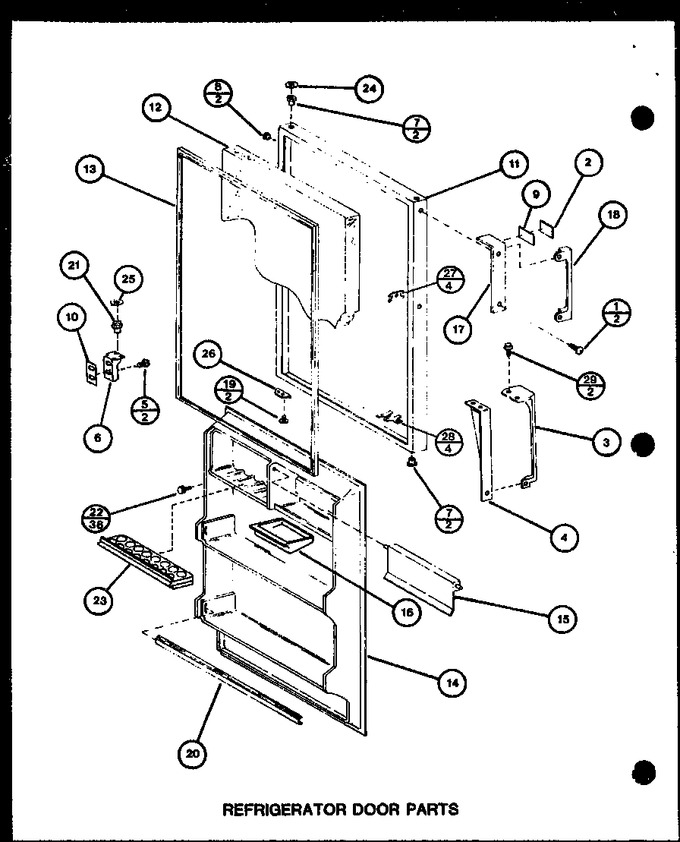

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0222418		Screw		Appelez-nous	-
2	C8915808		Nameplate, Handle		Appelez-nous	-
5	M0246258		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
8	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 7.39
8	M0310719		Plug		Appelez-nous	-
8	M0310715		Plug		Appelez-nous	-
9	C8920501		Pad, Nameplate		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
11	D7728331		Door Ref G-t-tm16h		Appelez-nous	-
11	D7728332		Door Ref L-t-tm16h		Appelez-nous	-
11	D7728330		Door Ref W-t-tm16h		Appelez-nous	-
12	B5683511		Insulation		Appelez-nous	-
13	D7605103		Gasket		Appelez-nous	-
14	D7652401		Inner Dr Panel-ref		Appelez-nous	-
15	D7604409		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
17	D7623504		Pad, Handle		Appelez-nous	-
18	D7254205		Handle, Door		Appelez-nous	-
20	C8907205		Retainer-pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
27	B8361401		Nut		Appelez-nous	-
	NOTE:		Cic-4/p7621302w Used In Canada		Appelez-nous	-
