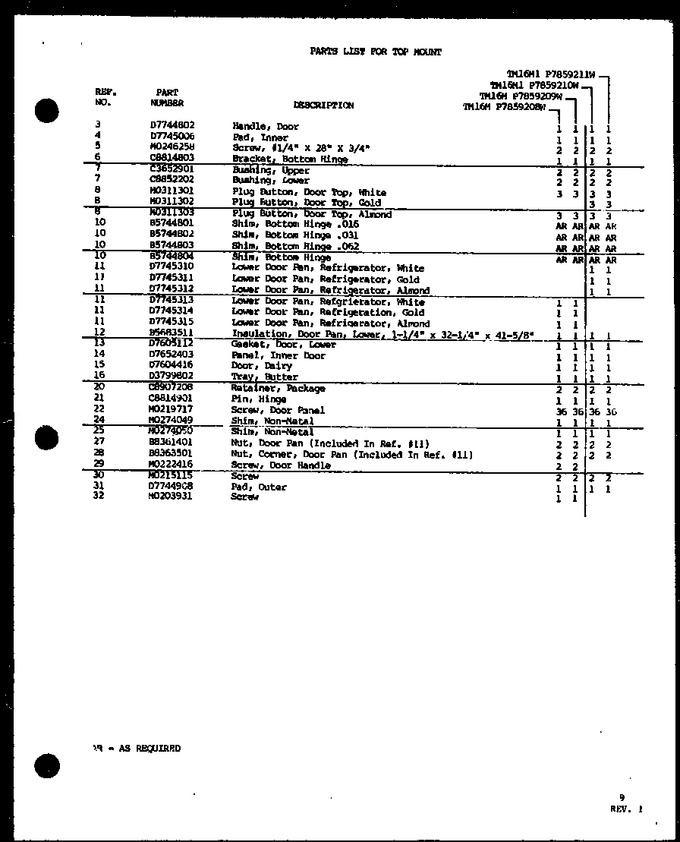

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	D7744802		Door Handle		Appelez-nous	-
4	D7745006		Pad, Handle Ref		Appelez-nous	-
5	M0246258		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
8	M0311301		Plug Button		Appelez-nous	-
8	M0311302		Plug Button		Appelez-nous	-
8	M0311303		Plug Button		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
10	B5744804		Shim, Bottom Hinge		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
11	D7745312		Dr Ref L Tm16k1 Q		Appelez-nous	-
11	D7745311		Door Ref G Tm16k1		Appelez-nous	-
11	D7745310		Door Ref W Tm16k1		Appelez-nous	-
12	B5683511		Insulation		Appelez-nous	-
13	D7605112		Gasket, Door		Appelez-nous	-
14	D7652403		Inner Dr Panel Ref W		Appelez-nous	-
15	D7604416		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
20	C8907208		Retainer, Pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
27	B8361401		Nut		Appelez-nous	-
28	B8363501		Nut		Appelez-nous	-
30	M0215115		Screw		Appelez-nous	-
31	D7744908		Pad Outer		Appelez-nous	-
	NOTE:		Cic4k/p7621311w Used In Canada		Appelez-nous	-
