01 - Cooktop
02 - Control Panel
03 - Oven
04 - Wiring Harness
05 - Door And Drawer
06 - Unit, Lit/optional
SELECT A DIAGRAM
New Model Search:

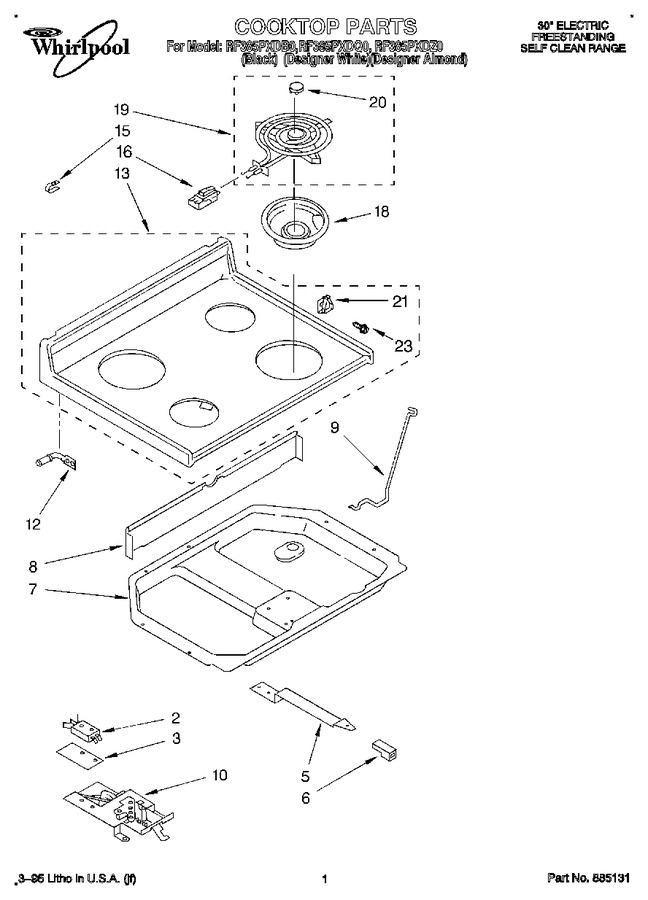

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 312717 | Screw (2) |
|
- | |||||
| 2 | 3169497 | Safety Switch |
|
- | |||||
| 3 | 3169498 | Insulator, Switch |
|
- | |||||
| 5 | 3169081 | Handle, Latch (black Mdl.) |
|
- | |||||
| 5 | 308422 | Handle, Latch (screw (2)) |
|
- | |||||
| 5 | 3150175 | Handle, Latch (designer Mdls.) |
|
- | |||||
| 6 | 155023 | Knob, Latch (screw, 8-32 X 1/4) |
|
Immediately | $ 7.91 | ||||
| 6 | 3169459 | Knob, Latch (almond) |
|
- | |||||
| 6 | 3150174 | Knob, Latch (white) |
|
- | |||||
| 6 | 3148684 | Knob, Latch (black) |
|
- | |||||
| 7 | WP3390631 | Screw (4) (Replaces: 309112) |
|
$ 7.43 | |||||
| 7 | 3169186 | Box, Burner |
|
- | |||||
| 8 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 8 | 307973 | Shield, Wiring |
|
- | |||||
| 9 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 9 | 3148659 | Rod, Cooktop |
|
- | |||||
| 10 | 3148668 | Latch Mechanism |
|
- | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 12 | 3169384 | Pin, Cooktop (2) |
|
- | |||||
| 13 | 3170986 | Cooktop (black) |
|
- | |||||
| 13 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 13 | 3170982 | Cooktop (almond) |
|
- | |||||
| 13 | 3170981 | Cooktop (white) |
|
- | |||||
| 15 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 15 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 16 | 330031 | Receptacle, Clip (4) (Replaces: 312606) |
|
Immediately | $ 17.93 | ||||
| 16 | WP313808 | Screw, 6-32 X 1/4 (4) (Replaces: 313808) |
|
$ 7.47 | |||||
| 18 | 3188847 | Pan Combination 6`` (2) (white Mdl.) |
|
- | |||||
| 18 | WPW10290350 | Pan Combination 6`` (2) (black & Alm. Mdls.) (Replaces: 3169205) |
|
Immediately | $ 16.45 | ||||
| 18 | 3188846 | Pan Combination 6`` (2) (white Mdl. 8`` (2)) |
|
- | |||||
| 18 | W10290353RW | Pan Combination 6`` (2) (black & Alm. Mdls) (Replaces: 3169204) |
|
Immediately | $ 22.47 | ||||
| 19 | WP660533 | Unit, Surface (8`` (2) (includes Illus. 20)) (Replaces: 660533) |
|
Immediately | $ 40.21 | ||||
| 19 | WP660532 | Unit, Surface (6`` (2)) (Replaces: 660532) |
|
Immediately | $ 45.10 | ||||
| 20 | 309195 | Medallion (4) |
|
- | |||||
| 21 | 814103 | Clip, Hold Down (4) (Replaces: 3148790) |
|
$ 9.47 | |||||
| 23 | 814103 | Fastener (4) (Replaces: 3148789) |
|
$ 9.47 |
