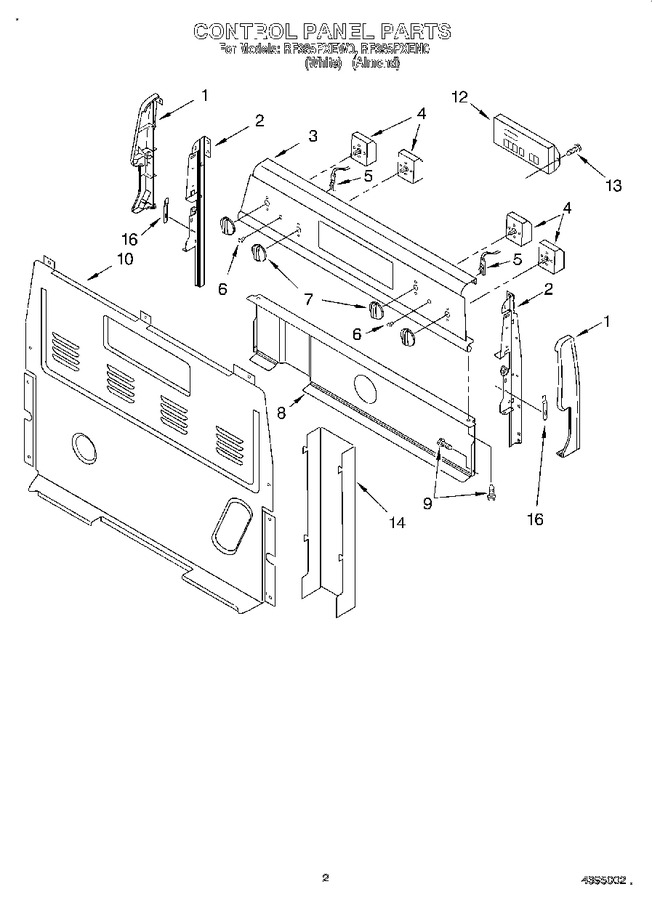

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186188		Endcap (left Hand)		Appelez-nous	-
1	3186189		Endcap (right Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3186176		Panel, Backguard		Appelez-nous	-
4	3196171		Switch, Infinite (screw (8))		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 62.56
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
5	313102		Light, Ind. (2)				$ 66.48
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 5.63
7	WP3196231		Knob, Infinite (4)   (Replaces: 3196231)			Immediately	$ 19.80
8	3196083		Shield, Heat		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 5.77
10	WP8272473		Cover, Upper   (Replaces: 3195163)				$ 197.14
10	W11233072		Screw (9)   (Replaces: 3196178)			Immediately	$ 13.25
12	3195100		Control, Range		Appelez-nous	-
13	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
14	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 125.64
14	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
16	3196200		Clip, Spring (2)				$ 9.41
