Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

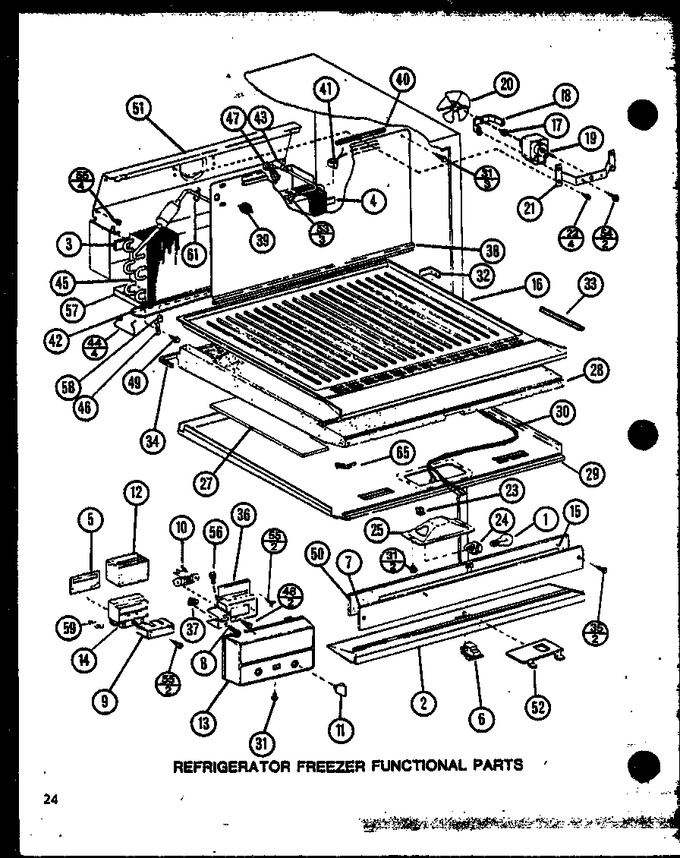

1	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
2	D7653003		Breaker, Ref Top V		Appelez-nous	-
3	B8322902		Block Evap. Coil		Appelez-nous	-
4	B8361701		Block Evap Coil		Appelez-nous	-
5	B8345401		Gasket, Damper		Appelez-nous	-
6	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 35.18
7	C8842504		Center Mullion		Appelez-nous	-
7	C8842505		Center Mullion, Almond		Appelez-nous	-
7	C8842501		W Center Mull. -pnt		Appelez-nous	-
8	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
8	C8902601		Insert, Control		Appelez-nous	-
10	C8907301		Cold Control				$ 104.73
11	D7009817		Knob, Cont.		Appelez-nous	-
12	D7543201		Insulation Damper		Appelez-nous	-
13	D7545018		Cover, Control		Appelez-nous	-
14	D7547401		Damper Ctrl, Warm 24 F., Norm		Appelez-nous	-
15	D7654504		Heater, Mullion		Appelez-nous	-
16	D7714704		Bottom; Freezer		Appelez-nous	-
17	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 41.55
18	C8881301		Brkt Evap Fan		Appelez-nous	-
19	WPC8891605		Motor, Evap Fan   (Replaces: C8891601)				$ 310.34
20	C8927801		Blade, Evap Fan		Appelez-nous	-
21	D7524501		Brkt Evap Fan Shroud		Appelez-nous	-
22	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.54
23	B5733302		Clip, Ground		Appelez-nous	-
24	D7714401		Socket-light		Appelez-nous	-
25	C8730101		Shield, Light		Appelez-nous	-
27	C8887902		Insulation		Appelez-nous	-
28	D7816906		Drain Block Kit		Appelez-nous	-
29	D7539308		Top Ref.		Appelez-nous	-
30	D7649602		Harness Mullion		Appelez-nous	-
31	67006425		Screw   (Replaces: M0230917)			Immediately	$ 6.57
32	M0275117		Tape Per Roll A		Appelez-nous	-
33	B5757703		Gasket, Air Block		Appelez-nous	-
34	B5759622		Gasket, Foam		Appelez-nous	-
35	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
36	D7713802		Bracket, Control		Appelez-nous	-
37	M0350101		Switch		Appelez-nous	-
38	D7874501		Evap Cover		Appelez-nous	-
39	A3138301		Grommet		Appelez-nous	-
40	A3189320		Gasket, Foam		Appelez-nous	-
41	WP10442411		Thermostat, Defrost   (Replaces: C8978402)			Immediately	$ 39.62
42	D7549703		Heater Evap.		Appelez-nous	-
43	D7759002		Assy, Heat Exch.		Appelez-nous	-
44	C8952001		Clip		Appelez-nous	-
45	R0170032		Evaporator Assembly		Appelez-nous	-
46	A3253803		Clamp		Appelez-nous	-
47	D7864401		Harness Liner		Appelez-nous	-
48	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.43
49	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
50	876370		Insulation, Batt   (Replaces: B0523561)				$ 218.83
51	D7691102		Shroud Fan		Appelez-nous	-
52	C8932201		Barrier Lt-sw K		Appelez-nous	-
53	WPW10339879		Tie   (Replaces: M0321202)				$ 7.47
54	R9800670		Kit, Screw   (Replaces: M0211030)				$ 9.52
55	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
56	M0253916		Screw		Appelez-nous	-
57	10067701		Tray, Drip Evap		Appelez-nous	-
58	10067801		Tube Drip Tray		Appelez-nous	-
59	A3263906		Gasket-per Ft		Appelez-nous	-
60	B5759626		Gasket, Sealing		Appelez-nous	-
61	M0321204		Wire Tie		Appelez-nous	-
