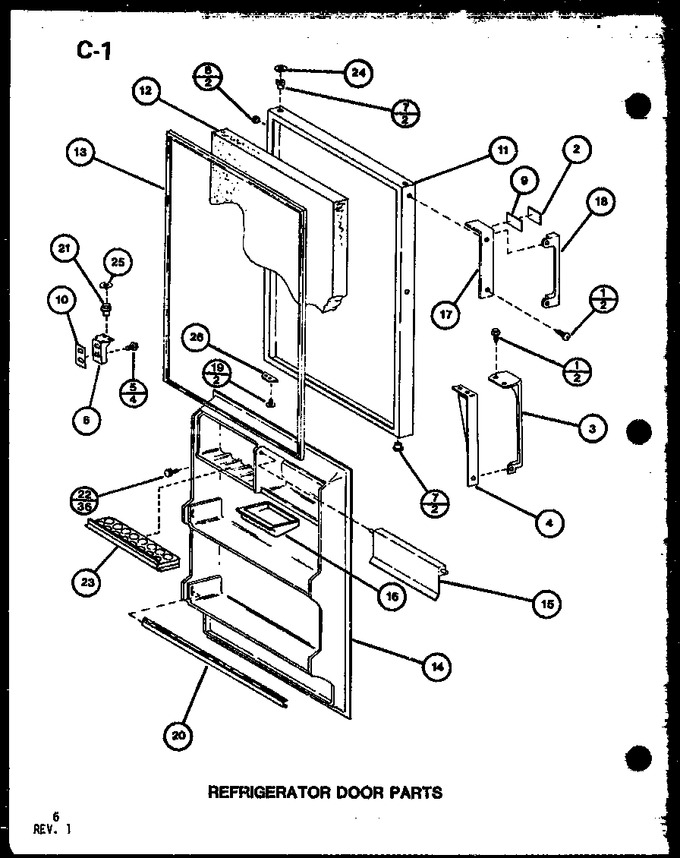

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0222317		Screw		Appelez-nous	-
2	C8915808		Nameplate, Handle		Appelez-nous	-
5	M0246159		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
7	C8862202		Bushing, Lower		Appelez-nous	-
8	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 7.39
8	M0310719		Plug		Appelez-nous	-
8	M0310725		Plug		Appelez-nous	-
8	M0310715		Plug		Appelez-nous	-
8	M0310717		Plug		Appelez-nous	-
9	C8920501		Pad, Nameplate		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
11	D7554528		Lower Door Pan, Ref, Avocado		Appelez-nous	-
11	D7554527		Door Ref C-t-tm20h		Appelez-nous	-
11	D7554526		Door Ref W-t-tm20h		Appelez-nous	-
11	D7554530		Door Ref L-t-tm20h		Appelez-nous	-
11	D7554529		Door Ref G-t-tm20h		Appelez-nous	-
12	B5683508		Insulation		Appelez-nous	-
13	D7605105		Gasket		Appelez-nous	-
14	D7652302		Inner Dr Panel-ref		Appelez-nous	-
15	D7604402		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
17	D7623502		Pad Handle		Appelez-nous	-
18	D7254205		Handle, Door		Appelez-nous	-
20	C8907205		Retainer-pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
	NOTE:		Cic-4/p76213-2w Canada		Appelez-nous	-
