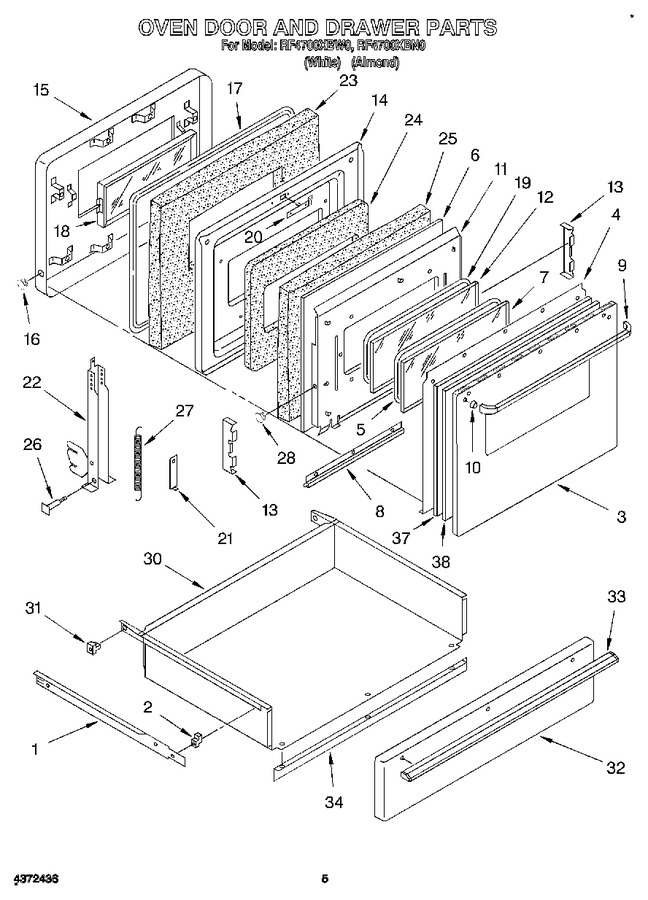

SELECT A DIAGRAM

01 - Cooktop


02 - Oven


03 - Oven Door And Drawer


04 - Auxiliary Oven And Door


05 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4372019		Rail, Drawer (l.h.)		Appelez-nous	-
1	4372018		Rail, Drawer (r.h.)		Appelez-nous	-
2	4371429		Guide, Front (2)		Appelez-nous	-
2	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
3	868430		Panel, Oven Door (main) (screw, 10-24 X 1/2 (7))		Appelez-nous	-
3	877620		Panel, Oven Door (main) (white)		Appelez-nous	-
3	877624		Panel, Oven Door (main) (almond)		Appelez-nous	-
4	868317		Panel, Insulator		Appelez-nous	-
5	4372369		``j`` Molding Outer Glass		Appelez-nous	-
6	4372029		Foil, Aluminum		Appelez-nous	-
7	816491		Glass, Outer		Appelez-nous	-
8	4372371		Retainer, Glass (2)		Appelez-nous	-
8	WP486579		Screw, 8-32 X 1/4 (4)   (Replaces: 868015)				$ 7.10
9	4372370		Handle, Door (main)		Appelez-nous	-
10	4372368		Screw, 10-24 X 1 1/4 (2)		Appelez-nous	-
10	4372373		Washer, Padded (2)		Appelez-nous	-
10	4371405		Spacer, Handle (2)		Appelez-nous	-
11	816493		Panel, Air Wash		Appelez-nous	-
12	816794		Glass, Inner		Appelez-nous	-
13	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
13	868503		Retainer, Glass Inner (2)		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
14	4372372		Liner, Oven Door		Appelez-nous	-
15	4372375		Baffle Weldment		Appelez-nous	-
16	4371345		Plug Button 3/16`` (2)		Appelez-nous	-
17	4371348		Seal, Oven Door		Appelez-nous	-
18	816490		Window Assembly		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
19	4372376		Seal, Window		Appelez-nous	-
20	816839		Strike Assembly		Appelez-nous	-
20	816058		Washer (2)		Appelez-nous	-
20	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
21	816474		Retainer, Door		Appelez-nous	-
22	241422		Assy, Door Hinge (washer (2))		Appelez-nous	-
22	247326		Assy, Door Hinge (screw, 10-24 X 1/2 (2))		Appelez-nous	-
22	816497		Assy, Door Hinge (l.h.)		Appelez-nous	-
22	816496		Assy, Door Hinge (r.h.)		Appelez-nous	-
23	4372374		Insulation, Baffle		Appelez-nous	-
24	4372030		Insulation, Liner		Appelez-nous	-
25	4372031		Insulation, Airwash		Appelez-nous	-
26	877884		Pin, Hinge (2)		Appelez-nous	-
27	4371456		Spring, Door (2)		Appelez-nous	-
28	834558		Plug Button (4)		Appelez-nous	-
30	868242		Drawer		Appelez-nous	-
31	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
31	868152		Guide, Rear (2)		Appelez-nous	-
32	868249		Panel, Drawer (almond)		Appelez-nous	-
32	681151		Panel, Drawer (screw, 10-24 X 1/2 (2))		Appelez-nous	-
32	865865		Panel, Drawer (white)		Appelez-nous	-
33	877903		Screw, 10-24 X 3/8 (3)		Appelez-nous	-
33	4372366		Handle, Drawer		Appelez-nous	-
34	866136		Cover, Toespace		Appelez-nous	-
34	WP965173		Screw, 8-15 X 3/8 (3)   (Replaces: 487521)			Immediately	$ 10.68
37	4372061		Insulation, Door		Appelez-nous	-
38	4372032		Insulation, Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
