SELECT A DIAGRAM

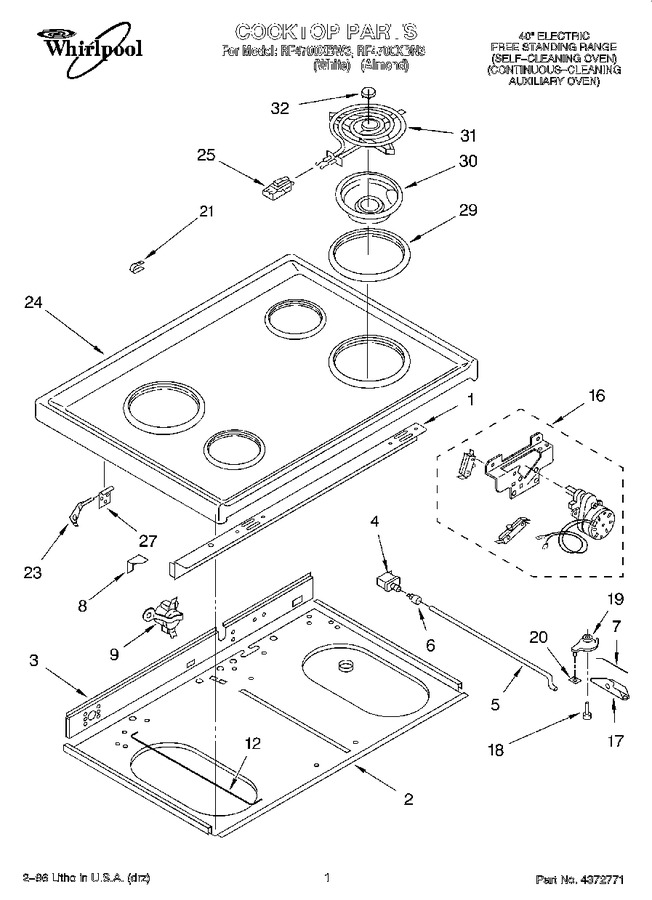

01 - Cooktop


02 - Oven


03 - Oven Door And Drawer


04 - Auxiliary Oven And Door


05 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
1	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
1	4372801		Bracket, Cooktop		Appelez-nous	-
2	241422		Washer (5)		Appelez-nous	-
2	4372802		Panel, Sub Top		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
3	4372621		Shield, Wiring		Appelez-nous	-
3	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
4	WP8283288		Switch, Door Latch   (Replaces: 4371407)			Immediately	$ 104.24
5	4372620		Rod, Push		Appelez-nous	-
6	4371574		Cap, Push Rod		Appelez-nous	-
7	4371396		Bar, Tie		Appelez-nous	-
8	4372616		Bracket, Filler		Appelez-nous	-
9	4372638		Thermostat, Safety		Appelez-nous	-
12	4371397		Rod, Support		Appelez-nous	-
16	834903		Screw, 4-40 X 1-1/4 (2)		Appelez-nous	-
16	4372635		Motor, Door Latch (complete)		Appelez-nous	-
17	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
17	816857		Bracket, Latch		Appelez-nous	-
17	241422		Washer (2)		Appelez-nous	-
18	4371168		Axle, Latch		Appelez-nous	-
19	4371167		Latch, Door		Appelez-nous	-
20	256158		Pushnut, 1/4		Appelez-nous	-
21	868136		Relief, Strain		Appelez-nous	-
23	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
23	868129		Pin, Hinge (r.h.)		Appelez-nous	-
23	868130		Pin, Hinge (l.h.)		Appelez-nous	-
24	868230		Cooktop (white)		Appelez-nous	-
24	868233		Cooktop (almond)		Appelez-nous	-
25	330031		Receptacle, Element (4)   (Replaces: 4371379)			Immediately	$ 17.93
27	4372379		Retainer, Hinge Pin (2)		Appelez-nous	-
27	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
29	834730		Ring, Trim (6`` (2))		Appelez-nous	-
29	834729		Ring, Trim (8`` (2))		Appelez-nous	-
30	4372798		Pan, Surface (8`` (2))		Appelez-nous	-
30	4372799		Pan, Surface (6`` (2))		Appelez-nous	-
31	WP660532		Element, Surface (includes Illus. 32) (6`` Unit (2))   (Replaces: 4372607)			Immediately	$ 45.10
31	WP660533		Element, Surface (includes Illus. 32) (8`` Unit (2))   (Replaces: 4372608)			Immediately	$ 40.21
32	4372378		Medallion		Appelez-nous	-
