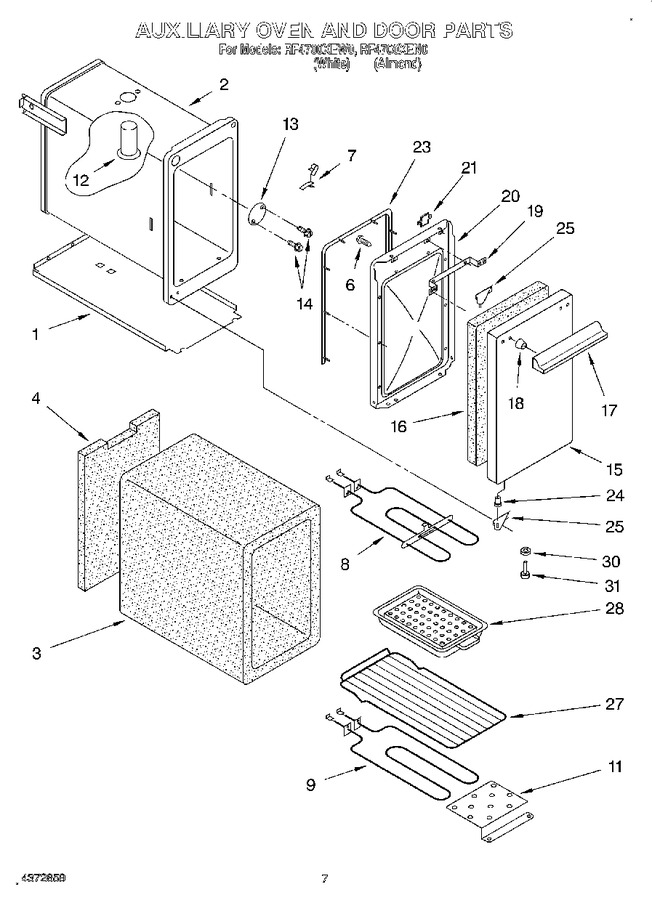

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4372626		Panel, Bottom		Appelez-nous	-
1	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
1	834649		Screw, 10-24 X 7/8		Appelez-nous	-
2	4372803		Liner, Auxiliary Oven		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	4372034		Insulation, Oven Wrap		Appelez-nous	-
4	4372035		Insulation, Oven Back		Appelez-nous	-
6	4372893		Screw (2)		Appelez-nous	-
7	4371741		Clip, Thermo Bulb		Appelez-nous	-
8	4372882		Element, Broil		Appelez-nous	-
8	486146		Screw, 10-24 X1/2 (2)				$ 12.83
9	4372883		Element, Bake		Appelez-nous	-
9	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	4372805		Shield, Bake Unit		Appelez-nous	-
11	486146		Screw, 10-24 X1/2 (2)				$ 12.83
12	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
12	241978		Vent Tube		Appelez-nous	-
13	4372884		Plate, Cover		Appelez-nous	-
14	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
15	4372888		Panel, Oven Door (auxiliary) (white)		Appelez-nous	-
15	4372887		Panel, Oven Door (auxiliary) (almond)		Appelez-nous	-
15	868430		Panel, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2))		Appelez-nous	-
16	4372033		Insulation, Aux. Oven Door		Appelez-nous	-
17	4372793		Screw		Appelez-nous	-
17	4372367		Handle, Door		Appelez-nous	-
18	4372580		Spacer, Handle (2)		Appelez-nous	-
19	4372583		Spacer, Door		Appelez-nous	-
20	4372794		Liner, Door		Appelez-nous	-
21	816461		Latch, Door Magnetic		Appelez-nous	-
23	4372584		Gasket, Door		Appelez-nous	-
24	4372892		Spacer, Hinge (2) Pin		Appelez-nous	-
25	4372895		Hinge, Oven Door (auxiliary) (top)		Appelez-nous	-
25	4372894		Hinge, Oven Door (auxiliary) (bottom)		Appelez-nous	-
25	868430		Hinge, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2) (bottom))		Appelez-nous	-
25	868382		Hinge, Oven Door (auxiliary) (screw, 8-32 X 3/8 (2) (top))		Appelez-nous	-
27	4372877		Rack, Oven Regular		Appelez-nous	-
28	834616		Kit, Broiler Pan And Grid		Appelez-nous	-
30	4372047		Washer, Rubber		Appelez-nous	-
31	4372048		River (2)		Appelez-nous	-
