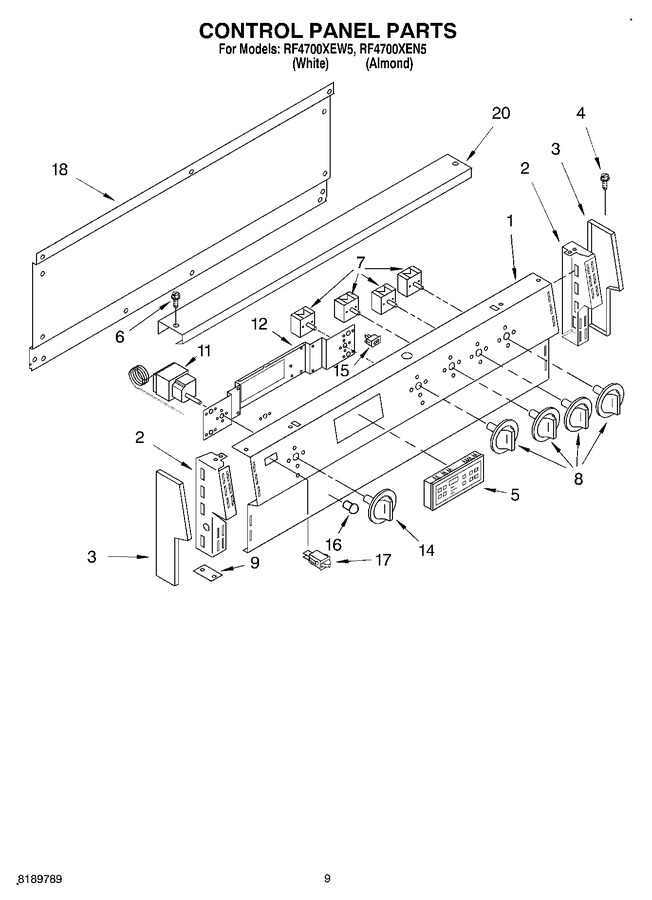

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4372866 | Panel, Backguard (white) |
|
- | |||||
| 1 | 4372865 | Panel, Backguard (almond) |
|
- | |||||
| 2 | 4372349 | Bracket, Endcap (r.h.) |
|
- | |||||
| 2 | 4372350 | Bracket, Endcap (l.h.) |
|
- | |||||
| 3 | 4372351 | End Cap (r.h. White) |
|
- | |||||
| 3 | 4372352 | End Cap (l.h. White) |
|
- | |||||
| 3 | 4372353 | End Cap (r.h. Almond) |
|
- | |||||
| 3 | 4372354 | End Cap (l.h. Almond) |
|
- | |||||
| 4 | 4372223 | Screw, Endcap 8-18 X 1/2 (4) |
|
- | |||||
| 5 | 4372867 | Clock, Timer |
|
- | |||||
| 5 | 4372868 | Overlay, Clock |
|
- | |||||
| 6 | 4372875 | Screw |
|
- | |||||
| 7 | 4372874 | Switch, Infin. (4) |
|
- | |||||
| 7 | WP486579 | Screw, 8-32 X 1/4 (8) (Replaces: 866466) |
|
$ 7.10 | |||||
| 8 | 4372917 | Knob, Control (4) |
|
- | |||||
| 9 | 4372918 | Spacer, Endcap |
|
- | |||||
| 11 | 877919 | Screw, 8-32 X 3/16 (2) |
|
- | |||||
| 11 | 4372915 | Thermostat, Oven (auxiliary Oven) |
|
- | |||||
| 12 | 4372872 | Screw |
|
- | |||||
| 12 | 4372916 | Bracket, Clock Mtg |
|
- | |||||
| 14 | 816483 | Knob, Thermostat |
|
- | |||||
| 14 | 4372876 | Screw Auxiliary Oven |
|
- | |||||
| 15 | 4371439 | Light, Indicator (indicator, Oven (2)) |
|
- | |||||
| 16 | 4372578 | Lens, Indicator |
|
- | |||||
| 17 | 4372576 | Switch, Oven Light |
|
- | |||||
| 18 | 4372356 | Cover, Backguard |
|
- | |||||
| 20 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 54.98 | ||||
| 20 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | |||||
| 20 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 20 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 20 | 261888 | New Avocado |
|
- | |||||
| 20 | 261886 | Coffee |
|
- | |||||
| 20 | 261890 | Harvest Gold |
|
- | |||||
| 20 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 53.90 | |||||
| 20 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 84.73 | |||||
| 20 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 20 | 978883 | Almond (uncut) |
|
- | |||||
| 20 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 20 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 20 | 261582 | Grease |
|
- | |||||
| 20 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 54.98 | ||||
| 20 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 20 | 4372870 | Trim, Backguard (white) |
|
- | |||||
| 20 | 4372869 | Trim, Backguard (almond) |
|
- | |||||
| 20 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 20 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 20 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 20 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 20 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 20 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 20 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 20 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 20 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 20 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 20 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 20 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 20 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 20 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 20 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 20 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 |
