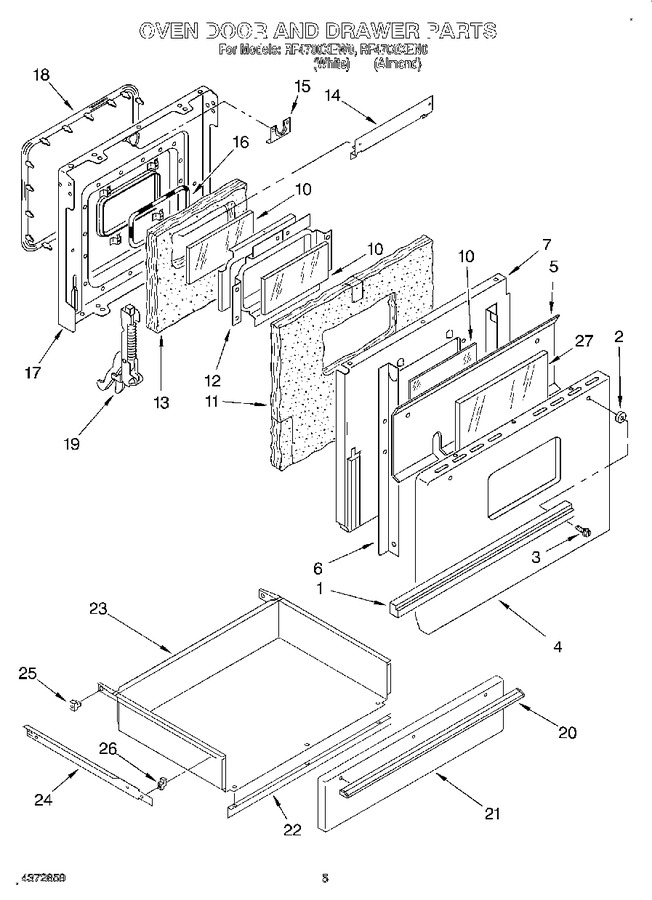

03 - Oven Door & Drawer


04 - Auxiliary Oven & Door


05 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4372370		Handle, Oven Door		Appelez-nous	-
2	4372580		Spacer, Handle (2)		Appelez-nous	-
3	4372900		Screw, Handle (2)		Appelez-nous	-
4	4372595		Panel, Door (white)		Appelez-nous	-
4	4372596		Panel, Door (almond)		Appelez-nous	-
5	4372606		Deflector, Heat		Appelez-nous	-
6	4372601		Bracket, Door (r.h.)		Appelez-nous	-
6	4372602		Bracket, Door (l.h.)		Appelez-nous	-
7	4372588		Baffle, Door		Appelez-nous	-
10	4372591		Glass, Door (3)		Appelez-nous	-
11	4372590		Insulation, Door		Appelez-nous	-
12	4372898		Frame, Glass		Appelez-nous	-
13	4372589		Insulation, Window		Appelez-nous	-
14	4372604		Retainer, Glass		Appelez-nous	-
15	4372605		Latch, Door		Appelez-nous	-
16	4372603		Gasket, Window		Appelez-nous	-
17	4372793		Screw		Appelez-nous	-
17	4372795		Liner, Door		Appelez-nous	-
18	4372796		Gasket, Door		Appelez-nous	-
19	4372599		Hinge Assembly (2)		Appelez-nous	-
20	4372366		Handle, Drawer		Appelez-nous	-
21	865865		Panel, Drawer (white)		Appelez-nous	-
21	868249		Panel, Drawer (almond)		Appelez-nous	-
22	4372579		Cover, Toespace		Appelez-nous	-
23	868242		Drawer		Appelez-nous	-
24	4372617		Rail, Drawer (r.h.)		Appelez-nous	-
24	4372618		Rail, Drawer (l.h.)		Appelez-nous	-
25	868152		Guide, Rear (2)		Appelez-nous	-
26	4371429		Guide, Front (2)		Appelez-nous	-
27	4372797		Glass, Door		Appelez-nous	-
