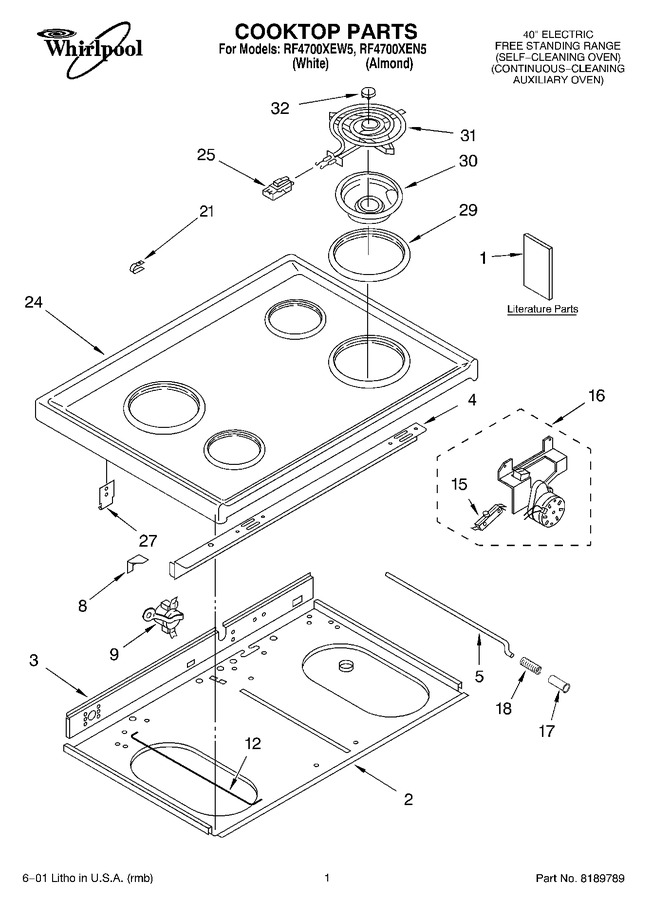

01 - Cooktop, Literature
02 - Oven
03 - Oven Door And Drawer
04 - Auxiliary Oven And Door
05 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4372849 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT4372929 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT4372850 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | 241422 | Washer (5) |
|
- | |||||
| 2 | 4372802 | Panel, Sub Top |
|
- | |||||
| 2 | 681151 | Screw, 10-24 X 1/2 (9) |
|
- | |||||
| 3 | 4372881 | Shield, Wiring |
|
- | |||||
| 3 | 681151 | Screw, 10-24 X 1/2 (4) |
|
- | |||||
| 4 | 4372879 | Bracket, Cooktop |
|
- | |||||
| 4 | 868430 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 4 | 681151 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 5 | 4372809 | Rod, Latch |
|
- | |||||
| 8 | 4372616 | Bracket, Filler |
|
- | |||||
| 9 | 4372925 | Thermostat, Safety |
|
- | |||||
| 12 | 4371397 | Rod, Support |
|
- | |||||
| 15 | 8189570 | Switch, Latch |
|
- | |||||
| 16 | 834903 | Screw, 4-40 X 1-1/4 (2) |
|
- | |||||
| 16 | 8189719 | Motor, Latch (complete) |
|
- | |||||
| 17 | 4372807 | Bushing, Latch |
|
- | |||||
| 18 | 4372808 | Spring, Latch |
|
- | |||||
| 21 | 868136 | Relief, Strain |
|
- | |||||
| 24 | 868230 | Cooktop (white) |
|
- | |||||
| 24 | 868233 | Cooktop (almond) |
|
- | |||||
| 25 | 330031 | Receptacle, Element (4) (Replaces: 4372889) |
|
Immediately | $ 17.93 | ||||
| 25 | 4372890 | Support (4) |
|
- | |||||
| 27 | 868130 | Bracket, Hinge Pin ((rh)) |
|
- | |||||
| 27 | 681151 | Bracket, Hinge Pin (screw, 10-24 X 1/2 (2)) |
|
- | |||||
| 27 | 868129 | Bracket, Hinge Pin ((lh)) |
|
- | |||||
| 29 | 834729 | Ring, Trim (8`` (2)) |
|
- | |||||
| 29 | 834730 | Ring, Trim (6`` (2)) |
|
- | |||||
| 30 | 4372799 | Pan, Surface (6`` (2)) |
|
- | |||||
| 30 | 4372798 | Pan, Surface (8`` (2)) |
|
- | |||||
| 31 | WP660532 | Element, Surface (includes Illus. 32) (6`` Unit (2)) (Replaces: 4372607) |
|
Immediately | $ 45.10 | ||||
| 31 | WP660533 | Element, Surface (includes Illus. 32) (8`` Unit (2)) (Replaces: 4372608) |
|
Immediately | $ 40.21 | ||||
| 32 | 4372891 | Medallion |
|
- |
