SELECT A DIAGRAM

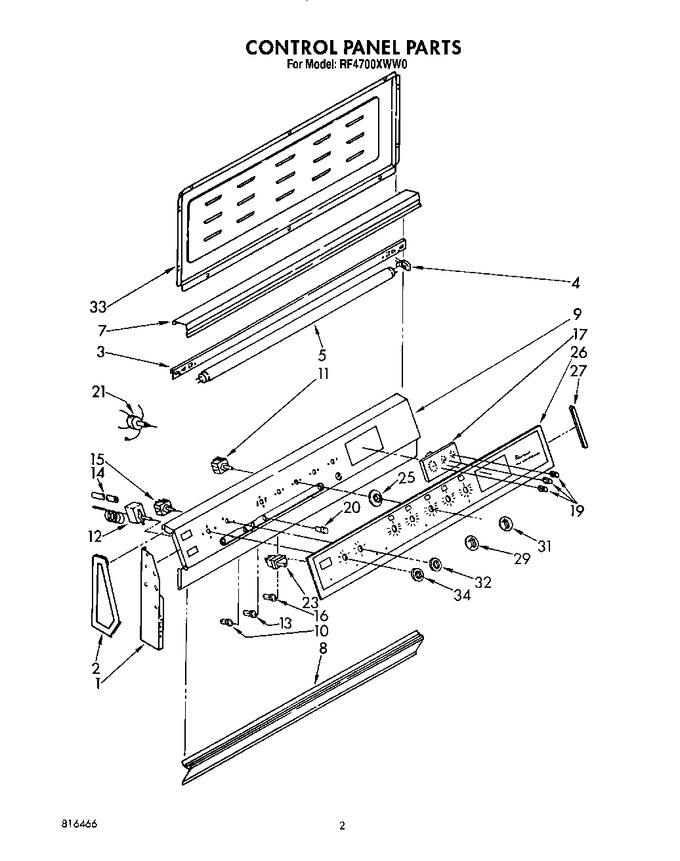

02 - Control Panel


03 - Cooktop


04 - Oven


05 - Oven Door And Drawer


06 - Auxiliary Oven And Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868858		Support, Backguard (r.h.)		Appelez-nous	-
1	868859		Support, Backguard (l.h.)		Appelez-nous	-
2	98788		End Cap (nut (4))		Appelez-nous	-
2	868261		End Cap (r.h.)		Appelez-nous	-
2	868262		End Cap (l.h.)		Appelez-nous	-
3	868287		Channel, Light Mounting		Appelez-nous	-
3	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
4	866082		Lampholder (r.h.)		Appelez-nous	-
4	487428		Lampholder (screw, 6-32 X 3/16 (2))		Appelez-nous	-
4	866081		Lampholder (l.h.)		Appelez-nous	-
5	674590		Light, Fluorescent 33``		Appelez-nous	-
7	868288		Shade, Lamp		Appelez-nous	-
8	865993		Base, Backguard		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	816485		Bracket, Control (almond)		Appelez-nous	-
9	816484		Bracket, Control (white)		Appelez-nous	-
9	681151		Bracket, Control (screw, 10-24 X 1/2 (2))		Appelez-nous	-
10	816479		Light, Indicator Surface Unit		Appelez-nous	-
11	W10900107		Switch, Infinite 6`` Unit (2)   (Replaces: 877669)			Immediately	$ 51.87
11	WP486579		Screw, 8-32 X 1/4 (4)   (Replaces: 866466)				$ 7.10
11	W10900107		Switch Infinite 8`` Unit (2)   (Replaces: 877670)			Immediately	$ 51.87
12	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
12	816487		Thermostat, Oven (main)		Appelez-nous	-
12	816488		Thermostat, Oven (auxiliary)		Appelez-nous	-
13	816477		Light Indicator		Appelez-nous	-
14	865730		Sleeving Insulation		Appelez-nous	-
15	877901		Switch, Selector (main)		Appelez-nous	-
15	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
16	816478		Light Indicator, Main Oven		Appelez-nous	-
17	487836		Nut, 10-32 (2)		Appelez-nous	-
17	816475		Timer, Digit (includes Ilus. 19).		Appelez-nous	-
19	816480		Knob, Timer (3)		Appelez-nous	-
20	834956		Bumper Stem (3)		Appelez-nous	-
21	98754		Nut, 3/8-27 (2)		Appelez-nous	-
21	816166		Switch, Fluorescent Light		Appelez-nous	-
23	98754		Nut, 3/8-27 (3)		Appelez-nous	-
23	816486		Switch, Oven Light		Appelez-nous	-
25	868925		Dial, Surface Unit & Griddle (5)		Appelez-nous	-
26	816476		Control Panel Aluminum		Appelez-nous	-
27	866086		Strip, Trim (2)		Appelez-nous	-
29	816482		Knob, Selector		Appelez-nous	-
31	816481		Knob, Control Surface Unit (4)		Appelez-nous	-
32	816494		Knob, Control Main Oven		Appelez-nous	-
33	816470		Cover, Back		Appelez-nous	-
33	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
34	816483		Knob, Auxiliary Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
