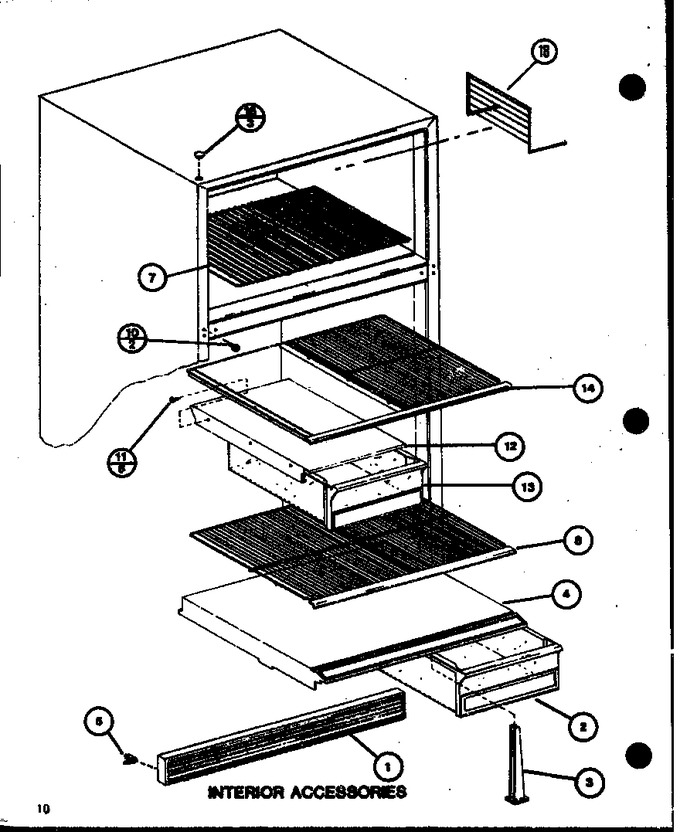

03 - Interior Accessories
04 - Page 4
05 - Rear Components
06 - Ref Door Parts
07 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520505 | Grille-toe |
|
- | |||||
| 2 | D7581022 | Crisper Pan |
|
- | |||||
| 3 | D7602202 | Crisper Support Post |
|
- | |||||
| 4 | D7616507 | Top, Crisper |
|
- | |||||
| 5 | M0117301 | Clip, Grille |
|
- | |||||
| 7 | D7580703 | Shelf, Fz |
|
- | |||||
| 8 | D7583801 | Shelf Wire K |
|
- | |||||
| 10 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| 11 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 12 | D7698207 | Top M.k White |
|
- | |||||
| 13 | D7710513 | Deli Drawer |
|
- | |||||
| 14 | D7584201 | Shelf, Wire M K |
|
- | |||||
| 16 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 7.39 | ||||
| 16 | M0310716 | Plug |
|
- | |||||
| 16 | M0310720 | Plug |
|
- | |||||
| 18 | D7806001 | Shelf Wire |
|
- |
