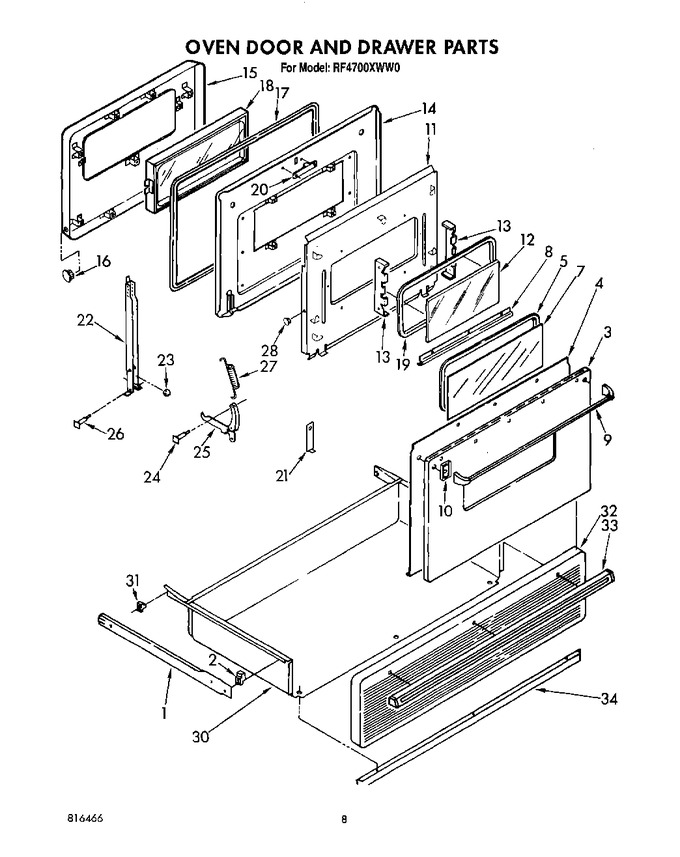

05 - Oven Door And Drawer


06 - Auxiliary Oven And Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
2	868127		Guide, Front (2)		Appelez-nous	-
3	868430		Panel, Oven Door (main) (screw, 10-24 X 1/2 (7))		Appelez-nous	-
3	877624		Panel, Oven Door (main) (almond)		Appelez-nous	-
3	877620		Panel, Oven Door (main) (white)		Appelez-nous	-
4	868317		Panel, Insulator		Appelez-nous	-
5	868045		``j`` Molding Outer Glass		Appelez-nous	-
7	816491		Glass, Outer		Appelez-nous	-
8	WP486579		Screw, 8-32 X 1/4 (4)   (Replaces: 868015)				$ 7.10
8	868013		Retainer, Glass (2)		Appelez-nous	-
9	877990		Handle, Door (main)		Appelez-nous	-
10	877991		Spacer, Handle (2)		Appelez-nous	-
10	487392		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
11	816493		Panel, Air Wash		Appelez-nous	-
12	868502		Glass, Inner (2)		Appelez-nous	-
13	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
13	868503		Retainer, Glass Inner (2)		Appelez-nous	-
14	877625		Liner, Oven Door		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
15	816492		Baffle Weldment		Appelez-nous	-
16	1420		Lug Button 3/16`` (2)				$ 1,222.33
17	877590		Seal, Oven Door		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	816490		Window Assembly		Appelez-nous	-
19	877506		Seal, Window		Appelez-nous	-
20	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
20	877507		Strike Assembly		Appelez-nous	-
20	816058		Washer (2)		Appelez-nous	-
21	816474		Retainer, Door		Appelez-nous	-
22	241422		Washer (2)		Appelez-nous	-
22	816496		Channel, R.h.		Appelez-nous	-
22	816497		Channel, L.h.		Appelez-nous	-
22	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
23	834471		Roller, Door Stop		Appelez-nous	-
24	241423		Rivet		Appelez-nous	-
25	865640		Arm, Hinge (2)		Appelez-nous	-
26	877884		Pin, Hinge (2)		Appelez-nous	-
27	241312		Spring, Door (2)		Appelez-nous	-
28	834558		Plug Button (4)		Appelez-nous	-
30	868242		Drawer		Appelez-nous	-
31	868152		Guide, Rear (2)		Appelez-nous	-
31	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
32	865865		Panel, Drawer (white)		Appelez-nous	-
32	868249		Panel, Drawer (almond)		Appelez-nous	-
32	681151		Panel, Drawer (screw, 10-24 X 1/2 (2))		Appelez-nous	-
33	877903		Screw, 10-24 X 3/8 (3)		Appelez-nous	-
33	816489		Handle, Drawer		Appelez-nous	-
34	WP965173		Screw, 8-15 X 3/8 (3)   (Replaces: 487521)			Immediately	$ 10.68
34	866136		Cover, Toespace		Appelez-nous	-
44	816031		Rail, Drawer (right Side)		Appelez-nous	-
44	816032		Rail, Drawer (left Side)		Appelez-nous	-
