SELECT A DIAGRAM

01 - Cooktop


02 - Oven


03 - Oven Door And Drawer

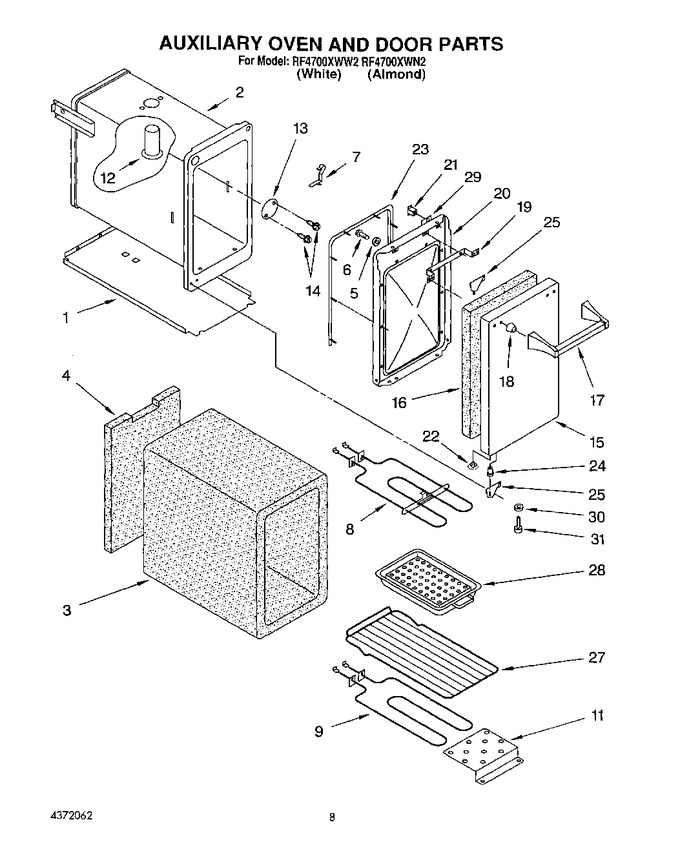

04 - Auxiliary Oven And Door


05 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816472		Panel, Bottom		Appelez-nous	-
1	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
1	834649		Screw, 10-24 X 7/8		Appelez-nous	-
2	4372058		Liner, Auxiliary Oven		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	4372034		Insulation, Oven Wrap		Appelez-nous	-
4	4372035		Insulation, Oven Back		Appelez-nous	-
5	4372043		Washer, Padded (2)		Appelez-nous	-
6	4372044		Screw, 10 X 3/8 (2)		Appelez-nous	-
7	98005642		Clip, Thermobulb   (Replaces: 259362)			Immediately	$ 78.37
8	486146		Screw, 10-24 X1/2 (2)				$ 12.83
8	877570		Element, Broil		Appelez-nous	-
9	877571		Element, Bake		Appelez-nous	-
9	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	866302		Shield, Bake Unit		Appelez-nous	-
12	241978		Vent Tube		Appelez-nous	-
12	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
13	816495		Plate, Cover		Appelez-nous	-
14	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
15	868430		Panel, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2))		Appelez-nous	-
15	868617		Panel, Oven Door (auxiliary) (almond)		Appelez-nous	-
15	868614		Panel, Oven Door (auxiliary) (white)		Appelez-nous	-
16	4372033		Insulation, Aux. Oven Door		Appelez-nous	-
17	816734		Handle, Door		Appelez-nous	-
17	868430		Screw, 10-24 X 1/2 01)		Appelez-nous	-
18	487392		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
18	4371405		Spacer, Handle (2)		Appelez-nous	-
19	868629		Spacer, Door		Appelez-nous	-
20	4372046		Liner, Door		Appelez-nous	-
20	241422		Washer		Appelez-nous	-
20	486847		Washer, Rubber		Appelez-nous	-
21	816461		Latch, Door Magnetic		Appelez-nous	-
22	868254		Button, Plug		Appelez-nous	-
23	4372045		Gasket, Door		Appelez-nous	-
24	834549		Spacer, Hinge (2) Pin		Appelez-nous	-
25	868382		Hinge, Oven Door (auxiliary) (screw, 8-32 X 3/8 (2) (top))		Appelez-nous	-
25	877922		Hinge, Oven Door (auxiliary) (top)		Appelez-nous	-
25	877921		Hinge, Oven Door (auxiliary) (bottom)		Appelez-nous	-
25	868430		Hinge, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2) (bottom))		Appelez-nous	-
27	868329		Rack, Oven Regular		Appelez-nous	-
28	834616		Kit, Broiler Pan And Grid		Appelez-nous	-
29	816463		Plate, Catch		Appelez-nous	-
30	4372047		Washer, Rubber		Appelez-nous	-
31	4372048		Rivet (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
