SELECT A DIAGRAM

02 - Control Panel


03 - Cooktop


04 - Oven


05 - Oven Door And Drawer

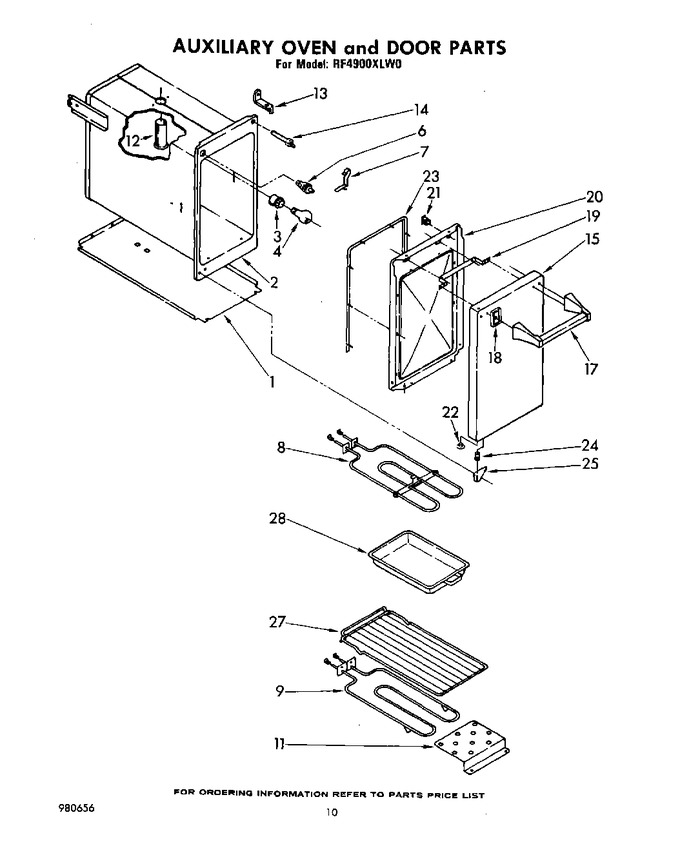

06 - Auxiliary Oven And Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	877569		Oven, Auxiliary		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	866133		Socket, Light		Appelez-nous	-
4	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
4	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
4	241422		Washer (2)		Appelez-nous	-
6	866294		Switch, Oven Light				$ 11.62
7	98005642		Clip, Thermobulb   (Replaces: 259362)			Immediately	$ 78.37
8	834965		Unit, Broil (alternate)		Appelez-nous	-
8	877570		Unit, Broil (alternate)		Appelez-nous	-
8	486146		Unit, Broil (screw, 10-24 X 1/2 (2))				$ 12.83
9	877571		Unit, Bake (alternate)		Appelez-nous	-
9	865971		Unit, Bake (alternate)		Appelez-nous	-
9	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
11	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	866302		Shield, Bake Unit		Appelez-nous	-
12	241978		Vent Tube		Appelez-nous	-
12	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
13	486146		Screw, 10-24 X 1/2				$ 12.83
13	877572		Bracket, Strike		Appelez-nous	-
14	W10080180		Nut   (Replaces: 486530)				$ 12.74
14	877573		Strike, Door		Appelez-nous	-
15	868430		Panel, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2))		Appelez-nous	-
15	868618		Panel, Oven Door (auxiliary) (coffee)		Appelez-nous	-
15	868616		Panel, Oven Door (auxiliary) (harvest Gold)		Appelez-nous	-
15	868615		Panel, Oven Door (auxiliary) (new Avocado)		Appelez-nous	-
15	868614		Panel, Oven Door (auxiliary) (white)		Appelez-nous	-
15	868617		Panel, Oven Door (auxiliary) (almond)		Appelez-nous	-
17	877650		Handle, Door		Appelez-nous	-
17	868430		Screw 10-24 X 1/2		Appelez-nous	-
18	868619		Spacer, Handle		Appelez-nous	-
18	487392		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
19	868629		Spacer, Door		Appelez-nous	-
20	241422		Washer		Appelez-nous	-
20	877585		Liner, Door		Appelez-nous	-
20	486847		Washer, Rubber		Appelez-nous	-
21	865808		Catch, Door Panel		Appelez-nous	-
22	868254		Button, Plug		Appelez-nous	-
23	868310		Gasket, Door (w/clips) (alternate)		Appelez-nous	-
23	865966		Gasket, Door (w/clips) (alternate)		Appelez-nous	-
24	834549		Spacer, Hinge Pin (2)		Appelez-nous	-
25	868382		Hinge, Oven Door (auxiliary) (screw, 8-32 X 3/8 (2) (top))		Appelez-nous	-
25	868430		Hinge, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2) (bottom))		Appelez-nous	-
25	865922		Hinge, Oven Door (auxiliary) (bottom)		Appelez-nous	-
25	865930		Hinge, Oven Door (auxiliary) (top)		Appelez-nous	-
27	868329		Rack, Oven Regular		Appelez-nous	-
28	980656		List, Part		Appelez-nous	-
28	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
28	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
28	261891		Harvest Gold (uncut)		Appelez-nous	-
28	799351		Thinner (1 Gal.)		Appelez-nous	-
28	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
28	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
28	261582		Grease		Appelez-nous	-
28	26151		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)		Appelez-nous	-
28	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 54.98
28	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
28	DE81-03850A		Rotisserie   (Replaces: 26183)				$ 53.69
28	877679		Tech Sheet		Appelez-nous	-
28	865621		Instructions, Installation		Appelez-nous	-
28	877617		Guide, Use & Care		Appelez-nous	-
28	308500		Book, Cooking Guide		Appelez-nous	-
28	865885		Label, Installation		Appelez-nous	-
28	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
28	834616		Pan & Griddle Broiler		Appelez-nous	-
28	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
28	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
28	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
28	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
28	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
28	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
28	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
28	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
28	242831		Wire (14 Ga. 200 C Red)				$ 342.23
28	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
28	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
28	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
28	7201		White				$ 0.03
28	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
28	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
28	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
28	35093		Enamel, White (13 Oz. Spray Can)		Appelez-nous	-
28	261888		New Avocado		Appelez-nous	-
28	261886		Coffee		Appelez-nous	-
28	261890		Harvest Gold		Appelez-nous	-
28	285006		Paint, Spray 13 Oz. (black)				$ 53.90
28	350942		Primer (white)   (Replaces: 206922)				$ 84.73
28	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
28	79934		White (uncut)		Appelez-nous	-
28	978883		Almond (uncut)		Appelez-nous	-
28	261889		New Avocado (uncut)		Appelez-nous	-
28	261887		Coffee (uncut)		Appelez-nous	-
34	86827		Panel, Bottom				$ 42.98
34	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
34	834649		Screw, 10-24 X 7/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
