SELECT A DIAGRAM
02 - Control Panel

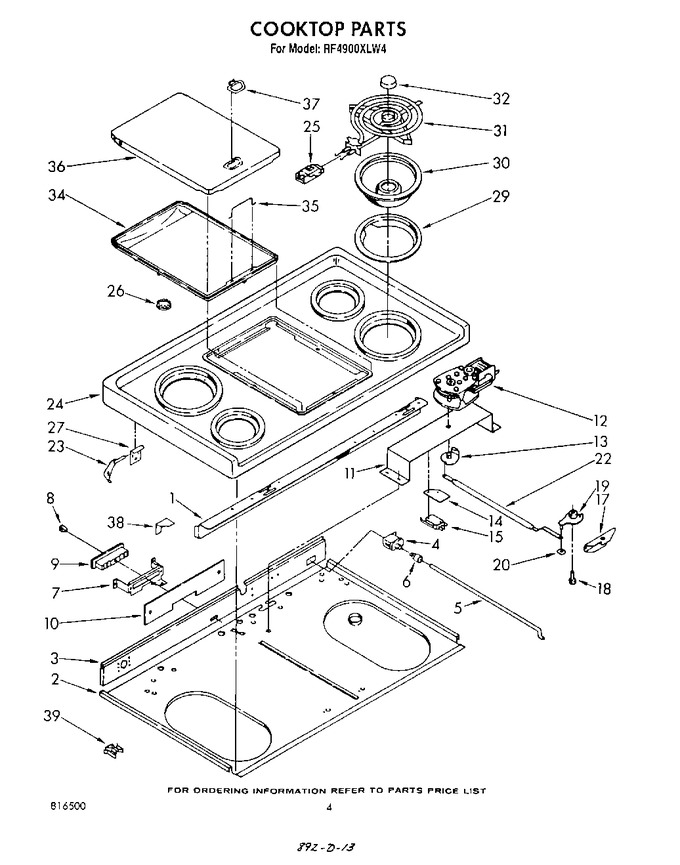

03 - Cook Top
04 - Oven
05 - Oven Door And Drawer
06 - Auxiliary Oven And Door , Literature
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 868430 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 1 | 816462 | Bracket, Cooktop |
|
- | |||||
| 1 | 681151 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 2 | 241422 | Washer (5) |
|
- | |||||
| 2 | 681151 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 2 | 868611 | Panel, Sub Top |
|
- | |||||
| 3 | 681151 | Screw, 10-24 X 1/2 (4) |
|
- | |||||
| 3 | 816175 | Shield, Wiring |
|
- | |||||
| 4 | WP8283288 | Switch, Oven Light (Replaces: 865677) |
|
Immediately | $ 104.24 | ||||
| 5 | 877591 | Push Rod, Switch |
|
- | |||||
| 6 | 877562 | Rod End |
|
- | |||||
| 7 | 868275 | Bracket, Receptacle |
|
- | |||||
| 7 | 868336 | Washer, Fiber (2) |
|
- | |||||
| 7 | 834649 | Screw, 10-24 X 7/8 (2) |
|
- | |||||
| 7 | 241422 | Washer (2) |
|
- | |||||
| 8 | 868277 | Terminal, Female (3) |
|
- | |||||
| 9 | WP486579 | Screw, 8-32 X 5/16 (3) (Replaces: 9408783) |
|
$ 7.10 | |||||
| 9 | 816058 | Washer, Padded |
|
- | |||||
| 9 | 816156 | Receptacle, Female |
|
- | |||||
| 10 | 868612 | Insulator, Wire Shield |
|
- | |||||
| 10 | 681151 | Screw, 10-24 X 1/2 (3) |
|
- | |||||
| 11 | 681151 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 11 | 868982 | Support, Latch Motor |
|
- | |||||
| 12 | 877619 | Alternate |
|
- | |||||
| 12 | 273225 | Screw, 8-32 X 5/16 (2) |
|
- | |||||
| 12 | 816159 | Motor, Door Latch |
|
- | |||||
| 12 | 868983 | Alternate |
|
- | |||||
| 12 | 834849 | Alternate |
|
- | |||||
| 13 | 455105 | Cam, Door Latch (pin, Spring) |
|
- | |||||
| 13 | 877629 | Cam, Door Latch (alternate) |
|
- | |||||
| 13 | 834483 | Cam, Door Latch (alternate) |
|
- | |||||
| 14 | 834905 | Insulator, Limit Switch (2) |
|
- | |||||
| 15 | 868987 | Switch Limit, Lower (alternate) |
|
- | |||||
| 15 | 834903 | Switch Limit, Lower (screw, 4-40 X 1-1/4 (2)) |
|
- | |||||
| 15 | 877801 | Switch Limit, Lower (alternate) |
|
- | |||||
| 15 | 834906 | Switch Limit (lower) (alternate) |
|
- | |||||
| 15 | 868986 | Switch Limit, Lower (alternate) |
|
- | |||||
| 15 | 868985 | Switch Limit, Lower (alternate) |
|
- | |||||
| 15 | 877800 | Switch Limit, Lower (alternate Switch Limit, Upper) |
|
- | |||||
| 15 | 868280 | Switch Limit, Lower (alternate) |
|
- | |||||
| 15 | 868988 | Switch Limit, Lower (alternate) |
|
- | |||||
| 17 | 877614 | Housing, Latch |
|
- | |||||
| 17 | 868430 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 17 | 241422 | Washer (2) |
|
- | |||||
| 18 | 877884 | Axle, Latch |
|
- | |||||
| 19 | 877628 | Alternate |
|
- | |||||
| 19 | 816105 | Latch, Door |
|
- | |||||
| 19 | 834484 | Alternate |
|
- | |||||
| 20 | 256158 | Pushnut, 3/16`` |
|
- | |||||
| 22 | 241547 | Pushnut, 3/16`` |
|
- | |||||
| 22 | 816158 | Bar, Tie |
|
- | |||||
| 23 | 868130 | Pin, Hinge (l.h.) |
|
- | |||||
| 23 | 868129 | Pin, Hinge (r.h.) |
|
- | |||||
| 23 | 681151 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 24 | 868282 | Cooktop (white) |
|
- | |||||
| 24 | 868285 | Cooktop (almond) |
|
- | |||||
| 25 | 330031 | Receptacle, R.h. (alternate) (Replaces: 865701) |
|
Immediately | $ 17.93 | ||||
| 25 | WP486754 | Receptacle, R.h. (screw, 6-32 X 5/16 (4)) (Replaces: 680406) |
|
$ 7.21 | |||||
| 25 | 330031 | Receptacle, R.h. (receptacle, L.h.) (alternate) (Replaces: 877578) |
|
Immediately | $ 17.93 | ||||
| 25 | 330031 | Receptacle, R.h. (alternate) (Replaces: 865702) |
|
Immediately | $ 17.93 | ||||
| 25 | 330031 | Receptacle, R.h. (alternate) (Replaces: 877579) |
|
Immediately | $ 17.93 | ||||
| 26 | 241283 | Plug, Hole (griddle) (2) |
|
- | |||||
| 27 | 681151 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 27 | 868137 | Retainer, Hinge Pin (2) |
|
- | |||||
| 29 | 834729 | Ring, Trim (8`` L.r. & R.f) |
|
- | |||||
| 29 | 834730 | Ring, Trim (6`` R.r. & L.f.) |
|
- | |||||
| 30 | 866341 | Pan, Surface Unit (8`` L.r. & R.f.) |
|
- | |||||
| 30 | 866340 | Pan, Surface Unit (6`` R.r. & L.f.) |
|
- | |||||
| 31 | WP660532 | Unit, Surface 6`` (includes Illus. 32) (alternate) (Replaces: 866446) |
|
Immediately | $ 45.10 | ||||
| 31 | WP660532 | Unit, Surface 6`` (includes Illus. 32) (alternate) (Replaces: 868445) |
|
Immediately | $ 45.10 | ||||
| 32 | 868522 | Medallion |
|
- | |||||
| 34 | 816127 | Griddle |
|
- | |||||
| 34 | 868434 | Terminal, Ground |
|
- | |||||
| 34 | 868876 | Screw (2) |
|
- | |||||
| 35 | 248568 | Handle, Griddle |
|
- | |||||
| 36 | 816173 | Cover, Griddle (almond) |
|
- | |||||
| 36 | 816172 | Cover, Griddle (white) |
|
- | |||||
| 37 | 866222 | Handle, Griddle Cover |
|
- | |||||
| 38 | 681151 | Screw, 10-24 X 1/2 (4) |
|
- | |||||
| 38 | 866333 | Bracket, Filler |
|
- | |||||
| 39 | WP486579 | Screw, 8-23 X 1/4 (3) (Replaces: 866466) |
|
$ 7.10 | |||||
| 39 | 816023 | Terminal (3) |
|
- |
