01 - Compressor Compartment Parts

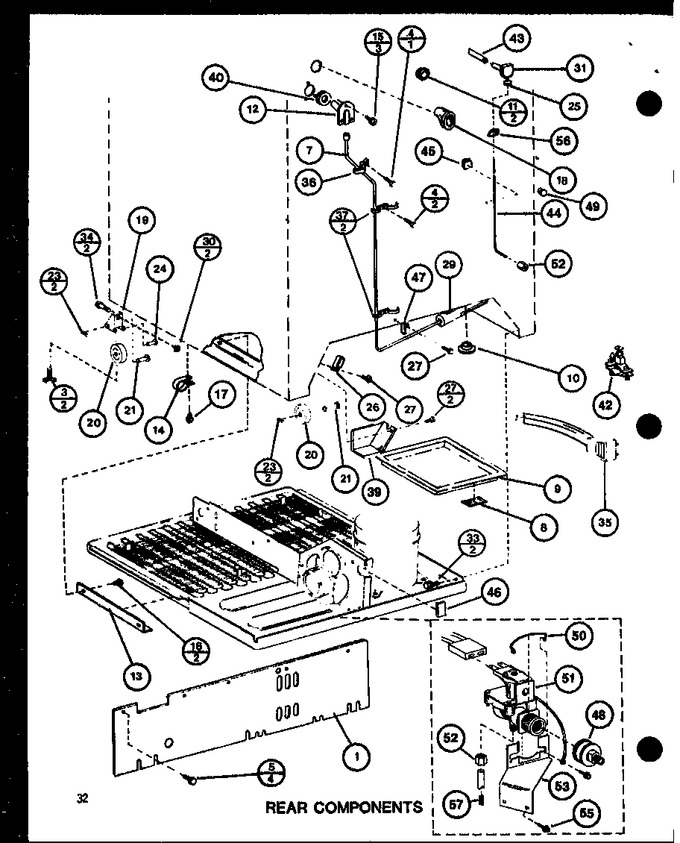

02 - Rear Components
03 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8890206 | Mc Back Assy |
|
- | |||||
| 3 | M0266510 | Glider Bolt |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.54 | ||||
| 5 | M0241118 | Screw-sm |
|
- | |||||
| 7 | D7653904 | Drain Tube |
|
- | |||||
| 8 | B8366901 | Pad Protective |
|
- | |||||
| 9 | D7497301 | Net-pan,drain |
|
- | |||||
| 10 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 11 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 12 | C3630901 | Elbow,drain Tube |
|
- | |||||
| 13 | C8913701 | Support, Mc |
|
- | |||||
| 14 | M0102305 | Clamp, Tube |
|
- | |||||
| 15 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 13.25 | ||||
| 16 | M0211530 | Screw |
|
- | |||||
| 17 | M0233716 | Screw |
|
- | |||||
| 18 | B5749501 | Tunnel-heat Ex |
|
- | |||||
| 20 | M0520102 | Roller |
|
- | |||||
| 21 | M1200201 | Pin K |
|
- | |||||
| 23 | M1200004 | Cotter Pin K |
|
- | |||||
| 25 | M0310319 | Plug Button |
|
- | |||||
| 26 | M0103901 | Clamp |
|
- | |||||
| 27 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 29 | A0329806 | Insul Tubing 1=12`` |
|
- | |||||
| 31 | B8318805 | Fill Tube Assy |
|
- | |||||
| 33 | M0233844 | Screw, T F |
|
- | |||||
| 35 | R0157154 | Power Cord |
|
- | |||||
| 36 | B5794201 | Clamp |
|
- | |||||
| 37 | B8372901 | Clamp |
|
- | |||||
| 39 | D7663301 | Cover, Wiring |
|
- | |||||
| 40 | A3132301 | Gasket |
|
- | |||||
| 42 | A3034801 | Saddle Valve |
|
- | |||||
| 43 | A3127401 | Tube |
|
- | |||||
| 44 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 11.75 | |||||
| 45 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.35 | |||||
| 46 | B5759604 | Gasket |
|
- | |||||
| 47 | M0102325 | Clamp |
|
- | |||||
| 48 | A3084501 | Coupling, Solenoid Valve And H |
|
- | |||||
| 49 | A3124301 | Plug |
|
- | |||||
| 50 | B8374701 | Clip, Water Valve |
|
- | |||||
| 51 | 4318047 | Valve-water K (Replaces: D7712601) |
|
Immediately | $ 66.68 | ||||
| 52 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.36 | |||||
| 53 | D7701601 | Brkt, Water Valve |
|
- | |||||
| 55 | 681390 | Screw (Replaces: M0251015) |
|
$ 12.34 | |||||
| 56 | M0321207 | Wire-tie |
|
- | |||||
| 57 | A1055101 | Spring, Antikink |
|
- |
