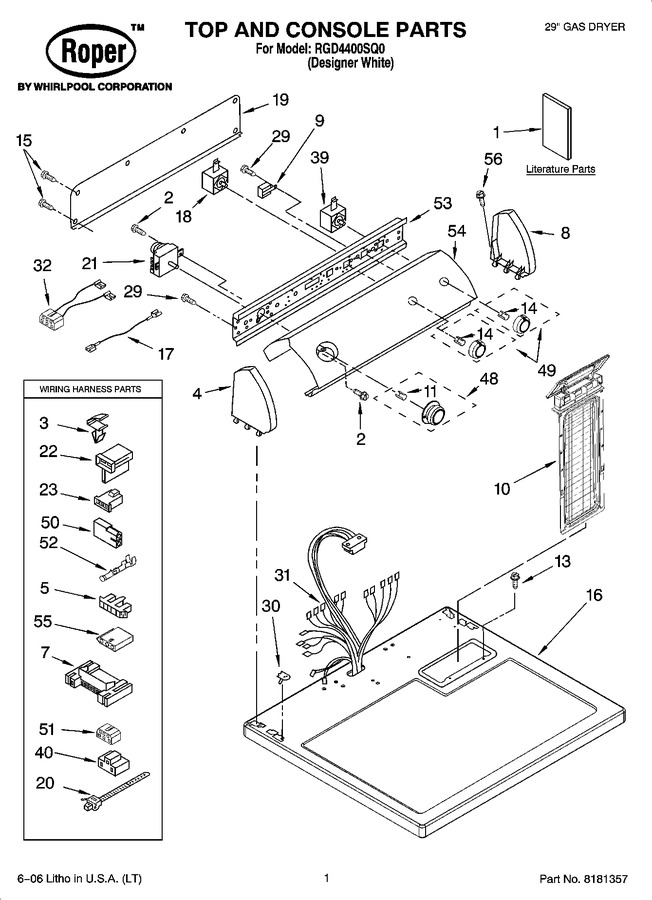

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8562589		Instructions, Installation		Appelez-nous	-
1	W10043010		Sheet, Cycle Feature		Appelez-nous	-
1	8578192		Use & Care Guide		Appelez-nous	-
1	8528190		Wiring Diagram		Appelez-nous	-
2	3400859		Screw, 8-18 X 7/32   (Replaces: 8533951)				$ 12.49
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
5	3397269		Connector, Timer				$ 25.55
7	3395683		Housing, Connector (motor)			Immediately	$ 49.01
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP688805		Spring Clip   (Replaces: 688805)			Immediately	$ 7.38
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
16	8557930		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
19	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
20	3391249		Tie, Cable		Appelez-nous	-
21	WP8299765		Timer   (Replaces: 8299765)				$ 302.97
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.42
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.57
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
31	8299878		Harness, Wiring		Appelez-nous	-
32	8539893		Wire-jumper Assembly (temperature)				$ 17.80
39	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 83.59
40	3401144		Connector, (pts Relay)				$ 11.53
48	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 53.65
49	WP8538957		Knob, Control (2)   (Replaces: 8538957)				$ 52.68
50	717252		Receptacle, 2 Way		Appelez-nous	-
51	3347243		Connector 6-circuit		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
53	8271418		Bracket, Control				$ 57.15
54	8578958		Panel, Control		Appelez-nous	-
55	3936144		Connector				$ 19.10
56	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
