01 - Compressor Compartment Parts
02 - Fz Door Parts

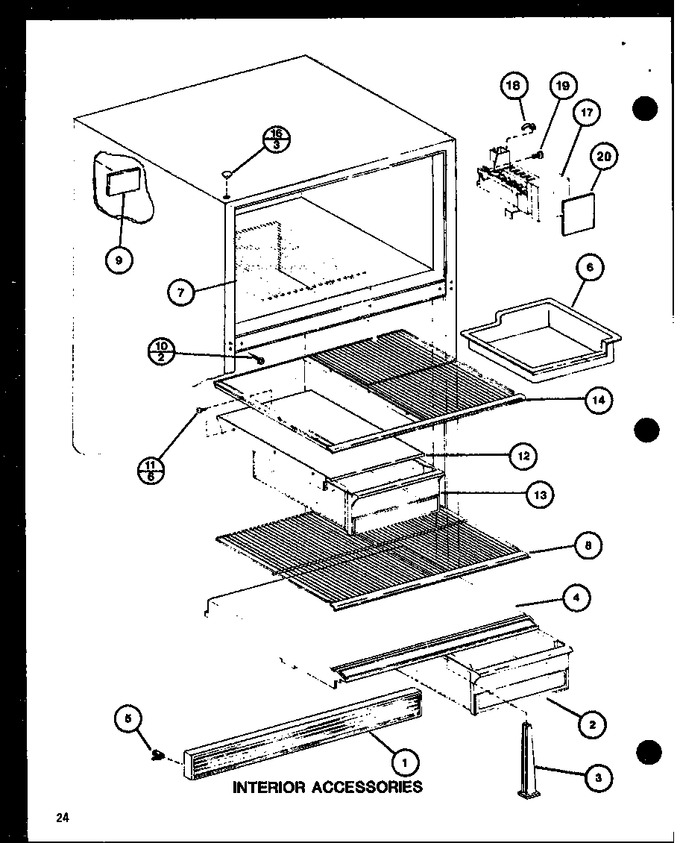

03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts
06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520502 | Grille-toe |
|
- | |||||
| 2 | D7581016 | Crisper Pan |
|
- | |||||
| 3 | D7602202 | Crisper Support Post |
|
- | |||||
| 4 | D7616504 | Top Crisper |
|
- | |||||
| 5 | M0117301 | Clip, Grille |
|
- | |||||
| 6 | D7621105 | Container, Ice Cube |
|
- | |||||
| 7 | D7710903 | Shelf |
|
- | |||||
| 8 | D7583803 | Shelf Wire |
|
- | |||||
| 9 | D7604902 | Cover |
|
- | |||||
| 10 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| 11 | M0210418 | Screw |
|
- | |||||
| 12 | D7698202 | Top M.k Cr White |
|
- | |||||
| 13 | D7710509 | Deli Drawer |
|
- | |||||
| 14 | D7584203 | Shelf M.k. Wire |
|
- | |||||
| 16 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 7.39 | ||||
| 16 | M0310716 | Plug |
|
- | |||||
| 17 | D7567104 | Ice Maker Assy |
|
- | |||||
| 18 | B5720301 | Clip |
|
- | |||||
| 19 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 20 | C8928504 | Insert Cover |
|
- |
