SELECT A DIAGRAM

01 - Top And Console Parts

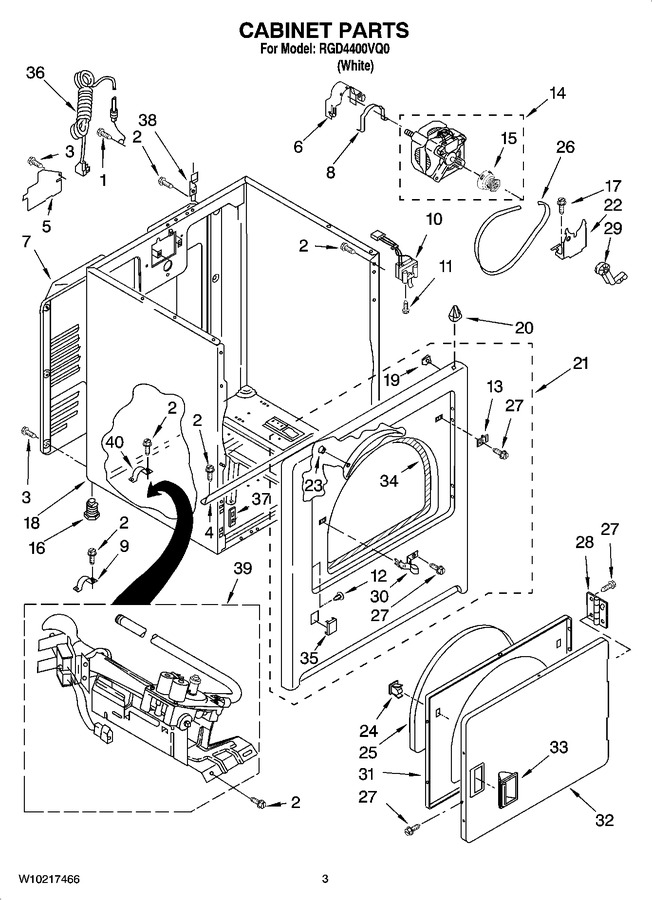

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 7.38
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
4	8541400		Bracket, Cabinet		Appelez-nous	-
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 566.78
6	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.39
7	280043		Panel, Rear   (Replaces: 3396805)				$ 322.53
8	WPW10121316		Clamp, Motor   (Replaces: W10121316)			Immediately	$ 24.26
9	341029		Clamp-elbow   (Replaces: 3980175)		Appelez-nous	-
10	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 56.37
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.71
12	WP3404413		Plug, Hole   (Replaces: 3404413)			Immediately	$ 7.52
13	WP3403630		Plug, Strike   (Replaces: 3403630)				$ 7.12
14	279827		Motor Assembly 60 Hz.   (Replaces: W10194250)			Immediately	$ 195.48
15	WP8066184		Pulley, 60 Hz.   (Replaces: 8066184)			Immediately	$ 45.92
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
17	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 12.64
18	8533643		Cabinet (includes Illus. 4)   (Replaces: 8530603)				$ 377.30
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 10.76
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 11.98
21	3403447		Panel Front		Appelez-nous	-
22	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 114.89
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 21.20
24	WP3389441		Catch, Door Assembly   (Replaces: 3389441)			Immediately	$ 6.56
25	W10861521		Seal, Door   (Replaces: 3405246)			Immediately	$ 61.07
26	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 16.34
27	WP488627		Screw, 8-18 X 3/8   (Replaces: 342055)				$ 7.30
28	WPW10362431		Hinge, Assembly   (Replaces: 3405514)			Immediately	$ 7.45
29	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 20.22
30	W11429589		Strike, Panel   (Replaces: 3403431)			Immediately	$ 18.89
31	WP3402341		Door, Rear   (Replaces: 3402341)				$ 187.84
32	W10861227		Door, Front   (Replaces: 3402335)				$ 242.33
33	WP3405184		Handle, Door   (Replaces: 3405184)				$ 71.83
34	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 83.41
35	3394975		Plug, Front Panel				$ 5.70
36	W11222083		Cord, Power   (Replaces: 344020)				$ 113.96
37	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 14.71
38	WP8066217		Hinge, Top (2)   (Replaces: 8066217)				$ 7.39
39	W10823508		Burner Assembly, 60 Hz. (see Pages 7 & 8 For Further Burner Breakdown)   (Replaces: 8318272)				$ 487.12
40	341029		Clamp, Pipe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
