Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 868271 Panel, Bottom Appelez-nous -
1 681151 Screw, 10-24 X 1/2 (2) Appelez-nous -
1 834649 Screw, 10-24 X 7/8 Appelez-nous -
2 681151 Screw, 10-24 X 1/2 (2) Appelez-nous -
2 868272 Oven, Auxiliary Appelez-nous -
3 866133 Socket, Light Appelez-nous -
4 8009 Bulb, Light   (Replaces: 527949) In-Stock Immediately $ 16.80

4 834649 Screw, 10-24 X 7/8 (2) Appelez-nous -
4 241422 Washer (2) Appelez-nous -
6 866294 Switch, Oven Light Special Order $ 11.62

7 98005642 Clip, Thermobulb   (Replaces: 259362) In-Stock Immediately $ 78.37

8 486146 Unit, Broil (screw, 10-24 X 1/2 (2)) Special Order $ 12.83

8 834965 Unit, Broil (alternate) Appelez-nous -
8 877570 Unit, Broil (alternate) Appelez-nous -
9 486146 Unit Bake (screw, 10-24 X 1/2 (2)) Special Order $ 12.83

9 865971 Unit, Bake (alternate) Appelez-nous -
9 877571 Unit, Bake (alternate) Appelez-nous -
11 866302 Shield, Bake Unit Appelez-nous -
11 486146 Screw, 10-24 X1/2 (2) Special Order $ 12.83

12 241978 Vent Tube Appelez-nous -
12 241428 Screw, 10-24 X 3/8 (2) Appelez-nous -
13 486146 Screw, 10-24 X 1/2 Special Order $ 12.83

13 877572 Bracket, Strike Appelez-nous -
14 W10080180 Nut   (Replaces: 486530) Special Order $ 12.74

14 865807 Strike, Door Appelez-nous -
15 868614 Panel, Oven Door (auxiliary) (white) Appelez-nous -
15 868430 Panel, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2)) Appelez-nous -
15 868618 Panel, Oven Door (auxiliary) (coffee) Appelez-nous -
15 868617 Panel, Oven Door (auxiliary) (almond) Appelez-nous -
15 868616 Panel, Oven Door (auxiliary) (harvest Gold) Appelez-nous -
15 868615 Panel, Oven Door (auxiliary) (new Avocado) Appelez-nous -
17 868430 Screw 10-24 X 1/2 Appelez-nous -
17 868334 Handle, Door Appelez-nous -
18 868619 Spacer, Handle Appelez-nous -
18 487392 Screw, 10-24 X 5/8 (2) Appelez-nous -
19 868629 Spacer, Door Appelez-nous -
20 486847 Washer, Rubber Appelez-nous -
20 865968 Liner, Door Appelez-nous -
20 241422 Washer Appelez-nous -
21 865808 Catch, Door Panel Appelez-nous -
22 868254 Button, Plug Appelez-nous -
23 865966 Gasket, Door (w/clips) (alternate) Appelez-nous -
23 868310 Gasket, Door (w/clips) (alternate) Appelez-nous -
24 834549 Spacer, Hinge Pin (2) Appelez-nous -
25 865930 Hinge, Oven Door (auxiliary) (top) Appelez-nous -
25 865922 Hinge, Oven Door (auxiliary) (bottom) Appelez-nous -
25 868430 Hinge, Oven Door (auxiliary) (screw, 10-24 X 1/2 (2) (bottom)) Appelez-nous -
25 868382 Hinge, Oven Door (auxiliary) (screw, 8-32 X 3/8 (2) (top)) Appelez-nous -
27 868329 Rack, Oven Regular Appelez-nous -
28 980513 List, Parts Appelez-nous -
28 350956 Paint, Spray 13 Oz. (almond) Special Order $ 48.61

28 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

28 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.93

28 799351 Thinner (1 Gal.) Appelez-nous -
28 799832 Kit, Porcelain Repair Appelez-nous -
28 261810 Touch-up Self-clean (1/2 Pt.) Appelez-nous -
28 261582 Grease Appelez-nous -
28 WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 52.37

28 WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 52.37

28 241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

28 865621 Instructions, Installation Appelez-nous -
28 868849 Guide, Use & Care Appelez-nous -
28 308500 Book, Cooking Guide Appelez-nous -
28 865885 Label, Installation Appelez-nous -
28 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
28 834616 Pan & Griddle Broiler Appelez-nous -
28 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
28 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
28 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
28 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
28 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
28 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
28 242829 Wire, Red 12 Ga. 150 Oc Appelez-nous -
28 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
28 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

28 242826 Wire, White 14 Ga. 150 Oc Appelez-nous -
28 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
28 242832 Wire, Yellow 14 Ga. 200 Oc Appelez-nous -
28 72019 New Avocado Special Order $ 42.97

28 DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 98.33

28 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 124.07

28 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 36.11

28 261888 New Avocado Appelez-nous -
28 261886 Coffee Appelez-nous -
28 261890 Harvest Gold Appelez-nous -
28 285006 Paint, Spray 13 Oz. (black) Special Order $ 53.90

28 350942 Primer (white)   (Replaces: 206922) Special Order $ 84.73

28 206925 Leveler (thinner) (2oz.) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 46.58

261891 Harvest Gold (uncut) Appelez-nous -
261887 Xcoffee (uncut) Appelez-nous -
261889 Xnew Avocado (uncut) Appelez-nous -
978883 Almond (uncut) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

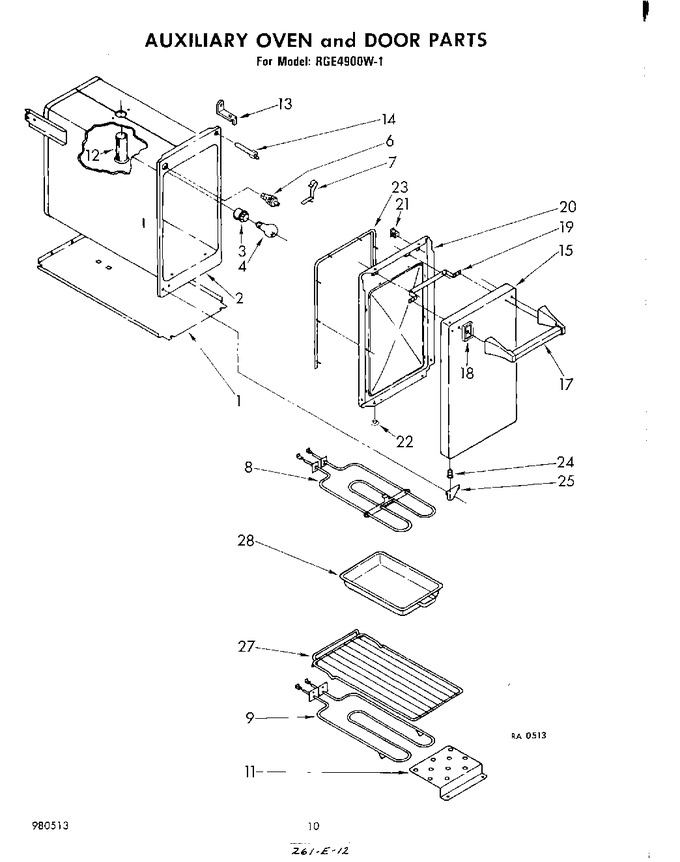

Diagram for RGE4900W1
