01 - Bulkhead Parts Optional Parts ( Not Included )

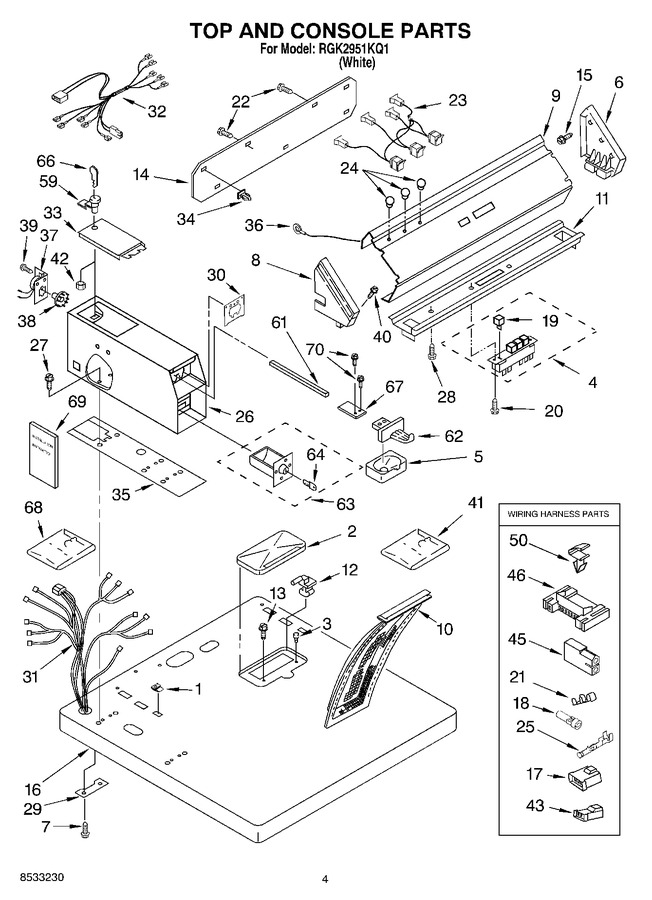

02 - Top And Console Parts
03 - Cabinet Parts
04 - 3401771 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 2 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 3 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 4 | WPW10330137 | Switch, Pushbutton (Replaces: 8316437) |
|
Immediately | $ 306.54 | ||||
| 5 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 70.12 | ||||
| 6 | 3949737 | Cap, End (r.h.) |
|
$ 49.53 | |||||
| 7 | W10841059 | Screw, Thread Cutting (Replaces: 98445) |
|
- | |||||
| 8 | 3402631 | End Cap (l.h.) |
|
- | |||||
| 9 | 8527824 | Panel, Control |
|
- | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 41.46 | ||||
| 11 | 3398113 | Bracket, Control |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.30 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.30 | |||||
| 13 | W11693756 | Screw, 8-18 X 3/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3387978 | Panel, Rear Console |
|
- | |||||
| 15 | WPW10109200 | Screw, 11-16 X 5/8 (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 16 | 8527847 | Top |
|
- | |||||
| 17 | WP3403498 | Connector, 3 Position (Replaces: 3403498) |
|
$ 6.57 | |||||
| 18 | 351297 | Plug, Harness |
|
- | |||||
| 19 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 306.54 | ||||
| 20 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 303921) |
|
$ 10.26 | |||||
| 21 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 10.23 | |||||
| 22 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 23 | 3401177 | Light, Indicator Assembly |
|
- | |||||
| 24 | WP3348109 | Lens, Amber (3) (Replaces: 3348109) |
|
Immediately | $ 11.83 | ||||
| 25 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 26 | 3978748 | Case, Meter |
|
- | |||||
| 27 | W11715721 | Bolt (5/16-24 X 1) (Replaces: 3349065) |
|
$ 6.73 | |||||
| 28 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 29 | 3347825 | Plate, Mounting |
|
- | |||||
| 30 | 279950 | Adapter Plate Chute Assembly (includes Illus. 5) (Replaces: 3954761) |
|
Immediately | $ 30.35 | ||||
| 31 | 8529862 | Harness, Wiring |
|
- | |||||
| 32 | 3401126 | Harness, Timer |
|
- | |||||
| 33 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 100.05 | |||||
| 34 | 689559 | Nut, Push-in |
|
- | |||||
| 35 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 29.39 | |||||
| 36 | 690853 | Wire, Ground |
|
- | |||||
| 37 | 279737 | Timer, (includes 4-pin Cam) (Replaces: 3387975) |
|
Immediately | $ 344.67 | ||||
| 38 | WP3387974 | Timing Cam (3-pin (60 Min)) (Replaces: 3387974) |
|
$ 7.87 | |||||
| 38 | WP339855 | Timing Cam (4 Pin (45 Min.)) (Replaces: 339855) |
|
$ 7.91 | |||||
| 38 | 51-161-6 | Timing Cam (6-pin (30 Min) Also Available) (Replaces: 343777) |
|
$ 31.07 | |||||
| 38 | WP339854 | Timing Cam (9 Pin (20 Min.)) (Replaces: 339854) |
|
$ 6.12 | |||||
| 38 | WP339853 | Timing Cam (12-pin (15 Min)) (Replaces: 339853) |
|
$ 7.30 | |||||
| 39 | 339805 | Screw, 10-32 X 3/16 |
|
$ 12.65 | |||||
| 40 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 41 | WP3406965 | Kit, Vertical 8-coin (includes Illus. 59-62-63 67-68-69 & 70) (Replaces: 3954807) |
|
Immediately | $ 376.60 | ||||
| 42 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.18 | |||||
| 43 | WP3403499 | Connector, 2 Position (Replaces: 3403499) |
|
$ 5.42 | |||||
| 45 | 717252 | Connector, 2-way |
|
- | |||||
| 46 | 3395683 | Connector, Housing |
|
Immediately | $ 49.01 | ||||
| 50 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 59 | W11315637 | Security Lock/key & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 68.71 | ||||
| 61 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 71.06 | ||||
| 62 | 8316265 | Inserts (not Shown) (25ยข) |
|
- | |||||
| 62 | W11126319 | Slide Mechanism (vertical 8-coin) (dollar Vend) (Replaces: 8316520) |
|
Immediately | $ 303.95 | ||||
| 62 | W11312584 | Inserts (not Shown) (blank) (Replaces: 8316264) |
|
$ 29.67 | |||||
| 63 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 177.61 | ||||
| 67 | 3390424 | Extension (Replaces: 8316523) |
|
Immediately | $ 64.49 | ||||
| 68 | 8316524 | Kit, Decal |
|
- | |||||
| 69 | 8316532 | Installation Instructions Coin Kit |
|
- | |||||
| 70 | C4889201 | Line- Suct |
|
- | |||||
| 70 | 3400086 | Screw, 10-32 X 3/8 |
|
$ 12.77 | |||||
| 70 | DTS60 | Thermostat (Replaces: B0592401) |
|
Immediately | $ 12.22 |
