01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

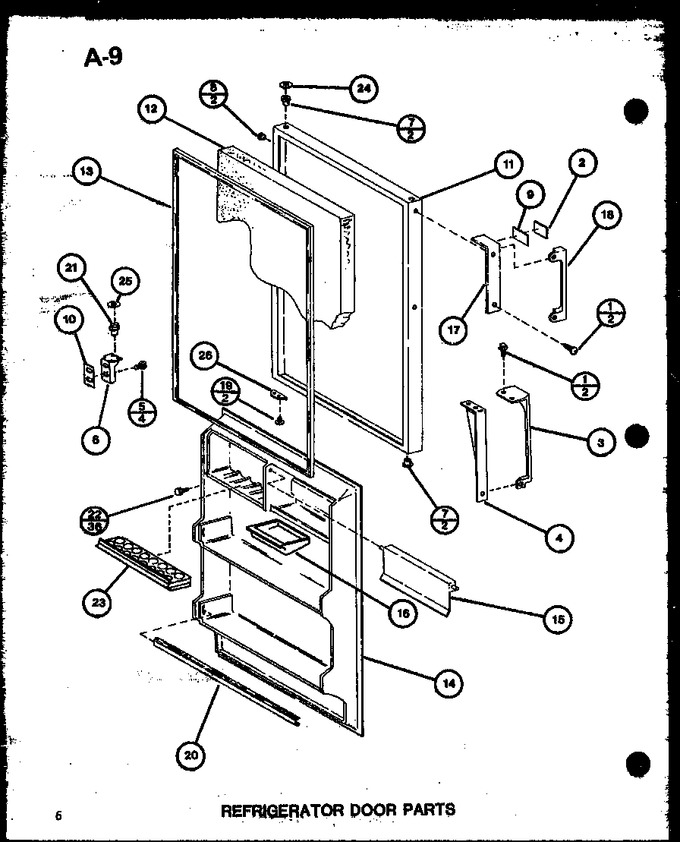

1	M0207431		Screw		Appelez-nous	-
1	M0222317		Screw		Appelez-nous	-
2	C8915804		Nameplate, Handle		Appelez-nous	-
3	D7610602		Handle Door		Appelez-nous	-
4	D7609804		Handle, Pad		Appelez-nous	-
5	M0246159		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
8	M0310715		Plug		Appelez-nous	-
9	C8920501		Pad, Nameplate		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
11	D7554503		Door Ref A-t-tr16h		Appelez-nous	-
11	D7554501		Door Ref W-t-tr16h		Appelez-nous	-
11	D7554502		Lower Door Pan, Ref, Copperton		Appelez-nous	-
11	D7554504		Lower Door Pan, Ref, Gold		Appelez-nous	-
11	D7554505		Door Ref L-t-tr16h		Appelez-nous	-
12	B5683511		Insulation		Appelez-nous	-
13	D7605103		Gasket		Appelez-nous	-
14	D7652401		Inner Dr Panel-ref		Appelez-nous	-
15	D7604402		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
19	M0205631		Machine Screw		Appelez-nous	-
20	C8907203		Retainer-pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
23	D7587802		Egg Tray		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
26	C8894801		Door Stop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
