01 - Compressor Compartment Parts


02 - Fz Door Parts

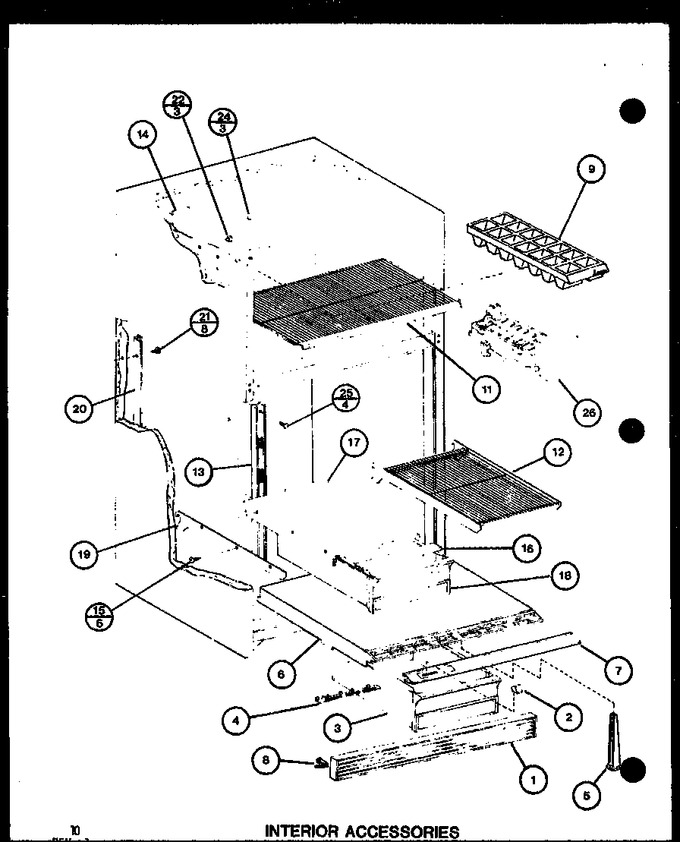

03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520502		Grille-toe		Appelez-nous	-
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581002		Net Crisper Pan		Appelez-nous	-
4	D7587701		Slide Humidity K		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616501		Top, Crisper A-k		Appelez-nous	-
7	D7616602		Trim, Crisper Top Front		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: C8717801)			Immediately	$ 43.06
11	D7580701		Shelf, Fz		Appelez-nous	-
12	D7654901		Shelf Wire		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
14	D7604901		Cover, Ice Maker		Appelez-nous	-
15	M0213129		Screw		Appelez-nous	-
16	C8913501		Trim, Shelf A		Appelez-nous	-
17	D7653401		Top, Meat Keeper		Appelez-nous	-
18	D7579302		Meat Pan		Appelez-nous	-
19	D7600011		Side Plate M K		Appelez-nous	-
20	D7599101		Ladder Side		Appelez-nous	-
20	D7599103		Ladder Side		Appelez-nous	-
21	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
22	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 7.39
24	M0310716		Plug		Appelez-nous	-
24	M0310720		Plug		Appelez-nous	-
24	M0310718		Plug		Appelez-nous	-
24	M0310721		Plug		Appelez-nous	-
24	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
25	M0230923		Screw		Appelez-nous	-
NI	R0179064		Crisper Top Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
