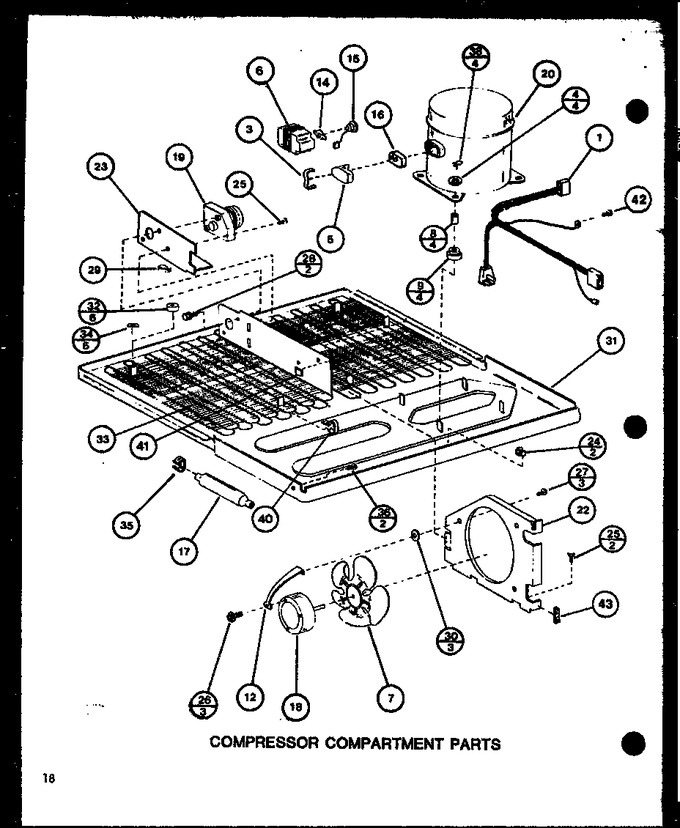

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Ref Door Parts


05 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8890206		Mc Back Assy		Appelez-nous	-
1	D7708501		Harness Mc		Appelez-nous	-
3	A3041801		Strap K		Appelez-nous	-
4	B8365302		Washer		Appelez-nous	-
5	M0241118		Screw-sm		Appelez-nous	-
5	C8867701		Term Cover K		Appelez-nous	-
6	B0559501		Cover K		Appelez-nous	-
7	D7653903		Tube, Drain		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	B5691701		Pad A		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)				$ 6.80
9	D7497301		Net-pan,drain		Appelez-nous	-
12	C3630901		Elbow,drain Tube		Appelez-nous	-
12	C8938501		Bracket, Cond Motor		Appelez-nous	-
14	M0102305		Clamp, Tube		Appelez-nous	-
14	C8916701		Spring K		Appelez-nous	-
15	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 13.25
15	C8866904		Overload		Appelez-nous	-
16	M0211530		Screw		Appelez-nous	-
16	C3553406		Relay		Appelez-nous	-
17	WPB2150504		Drier   (Replaces: B5715001)				$ 123.28
17	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.54
18	B5749501		Tunnel-heat Ex		Appelez-nous	-
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 98.23
19	C8742401		Assy, Roller Bracket		Appelez-nous	-
19	D7004107		Timer		Appelez-nous	-
20	M0520102		Roller		Appelez-nous	-
20	D7743201		Compressor Ae1390v		Appelez-nous	-
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	M1200004		Cotter Pin K		Appelez-nous	-
23	D7656701		Bracket, Timer		Appelez-nous	-
24	M0110508		Clip		Appelez-nous	-
24	M1205302		Rivet				$ 5.85
25	M0310319		Plug Button		Appelez-nous	-
25	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
26	M0103901		Clamp		Appelez-nous	-
26	M0220101		Screw		Appelez-nous	-
27	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0102325		Clamp		Appelez-nous	-
28	M0218118		Screw		Appelez-nous	-
29	M0321204		Wire Tie		Appelez-nous	-
29	A0329806		Insul Tubing 1=12``		Appelez-nous	-
30	M0500107		Grommet K		Appelez-nous	-
30	M0286708		Nut, Speed				$ 43.07
31	B8318805		Fill Tube Assy		Appelez-nous	-
31	D7595405		Base Pan, Machine Compartment		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	M0233844		Screw, T F		Appelez-nous	-
33	D7654201		Condenser		Appelez-nous	-
34	M0293703		Speednut		Appelez-nous	-
34	M0204339		Screw Bolt K		Appelez-nous	-
35	R0157154		Power Cord		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
36	M0233844		Screw, T F		Appelez-nous	-
36	M0233716		Screw		Appelez-nous	-
38	D7663301		Cover, Wiring		Appelez-nous	-
38	A3140801		Clip K		Appelez-nous	-
40	M0106101		Clip		Appelez-nous	-
40	B8372901		Clamp		Appelez-nous	-
41	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.54
41	A9008301		Felt		Appelez-nous	-
42	M0253916		Screw		Appelez-nous	-
43	B5759604		Gasket		Appelez-nous	-
	NOTE:		Cic4h/p7621306w Used In Canada		Appelez-nous	-
NI	C8913701		Support, Mc		Appelez-nous	-
NI	A3132301		Gasket		Appelez-nous	-
NI	M1200201		Pin K		Appelez-nous	-
NI	A3076901		Plug-button				$ 5.70
NI	A3080001		Plug, Button (blk)		Appelez-nous	-
NI	B5794201		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
