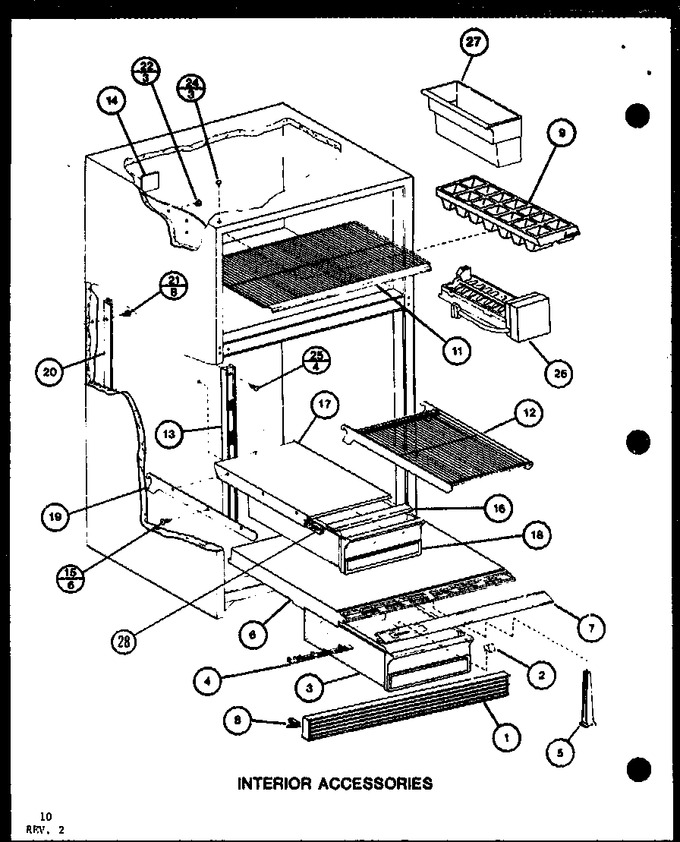

01 - Compressor Compartment Parts
02 - Fz Door Parts
03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts
06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520505 | Grille-toe |
|
- | |||||
| 2 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 3 | D7581023 | Pan, Crisper |
|
- | |||||
| 4 | D7587705 | Slide Humidity |
|
- | |||||
| 5 | D7602202 | Crisper Support Post |
|
- | |||||
| 6 | D7616505 | Top,crisper A-k |
|
- | |||||
| 7 | D7616617 | Trim |
|
- | |||||
| 8 | M0117301 | Clip, Grille |
|
- | |||||
| 9 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 43.06 | ||||
| 11 | D7580701 | Shelf, Fz |
|
- | |||||
| 12 | D7654901 | Shelf Wire |
|
- | |||||
| 13 | D7599001 | Ladder Center |
|
- | |||||
| 14 | D7604902 | Cover |
|
- | |||||
| 15 | M0210418 | Screw |
|
- | |||||
| 16 | C8913507 | Trim, Front Shelf |
|
- | |||||
| 17 | D7698207 | Top M.k White |
|
- | |||||
| 18 | D7710514 | Deli Drawer |
|
- | |||||
| 19 | D7600028 | Side Plate Mk |
|
- | |||||
| 20 | D7599101 | Ladder Side |
|
- | |||||
| 20 | D7599103 | Ladder Side |
|
- | |||||
| 21 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 22 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 7.39 | ||||
| 24 | M0310720 | Plug |
|
- | |||||
| 24 | M0310716 | Plug |
|
- | |||||
| 24 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 7.39 | ||||
| 25 | M0230923 | Screw |
|
- | |||||
| 26 | Y00000000 | See Note Add On Ice Maker -- (available From Sales, See Pages 48 And49) |
|
- | |||||
| 27 | D7709904 | Ice Bucket |
|
- | |||||
| 28 | D7718401 | Seal Meat Pan |
|
- | |||||
| NOTE: | Ic3k/p7621309w Used In U.s. |
|
- | ||||||
| NI | R0179090 | Crisper Top Assy |
|
- | |||||
| NI | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 |
