SELECT A DIAGRAM

01 - Cooktop

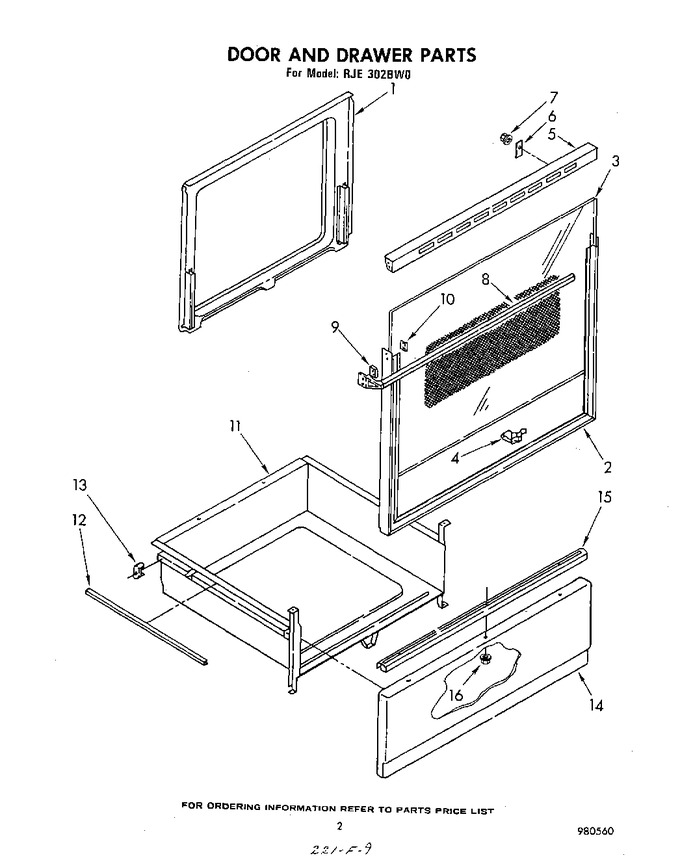

02 - Door And Drawer, Lit/optional


03 - Control Panel


04 - Oven


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	338177		Clip		Appelez-nous	-
1	327863		Liner, Door		Appelez-nous	-
1	254217		Screw, 10a X 3/8 (3)		Appelez-nous	-
2	310427		Frame, Door 30``		Appelez-nous	-
3	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
4	310706		Clip, Glass (10)		Appelez-nous	-
5	307748		Screw		Appelez-nous	-
5	310784		Top, Door		Appelez-nous	-
6	310705		Hold Down, Glass (2)		Appelez-nous	-
7	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.42
8	311572		Handle, Door		Appelez-nous	-
9	310707		Spacer, Door Handle (2)		Appelez-nous	-
10	311506		Clip		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
13	307980		Glide, Rear (2)		Appelez-nous	-
14	307936		Panel, Drawer (new Avocado)		Appelez-nous	-
14	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
14	307939		Panel, Drawer (almond)		Appelez-nous	-
14	309923		Panel Drawer (black)		Appelez-nous	-
14	307537		Panel, Drawer (screw, 8-32 (3))		Appelez-nous	-
14	307935		Panel Drawer (white)		Appelez-nous	-
14	307937		Panel, Drawer (coffee)		Appelez-nous	-
15	310399		Handle, Drawer		Appelez-nous	-
15	WP912618		Screw (3)   (Replaces: 308541)				$ 7.47
16	980560		List, Parts		Appelez-nous	-
16	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
16	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
16	261582		Grease		Appelez-nous	-
16	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 52.37
16	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 52.37
16	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
16	308494		Installation Instructions		Appelez-nous	-
16	310594		Guide, Use & Care		Appelez-nous	-
16	308500		Book, Cooking Guide		Appelez-nous	-
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.82
16	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
16	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
16	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
16	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
16	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
16	261888		New Avocado		Appelez-nous	-
16	261886		Coffee		Appelez-nous	-
16	261890		Golden Harvest		Appelez-nous	-
16	285006		Paint, Spray 13 Oz. (black)				$ 53.90
16	350942		Primer (white)   (Replaces: 206922)				$ 84.73
16	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
16	799351		Thinner (1 Gal.)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	261887		Xcoffee (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
