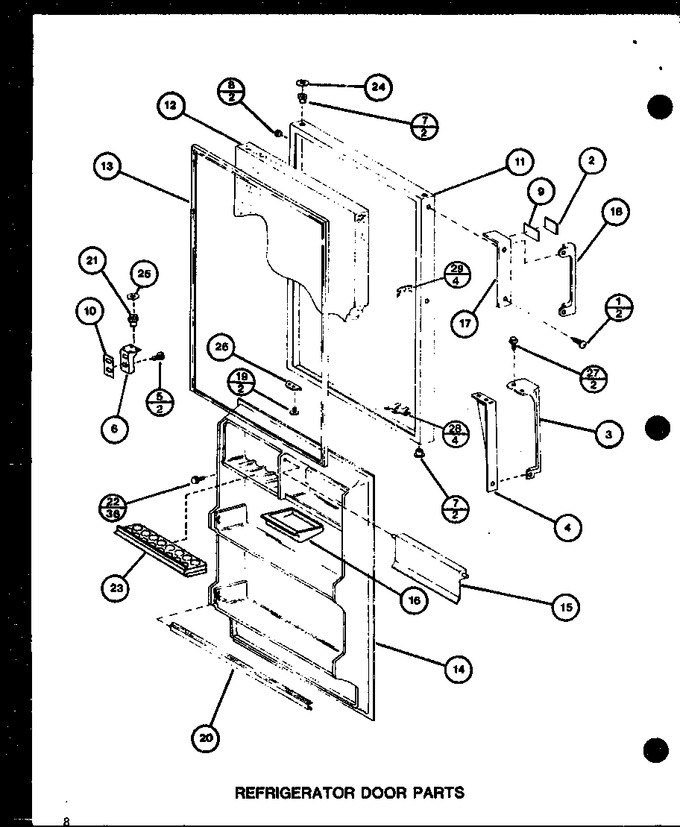

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0222418		Screw		Appelez-nous	-
2	C8915804		Nameplate, Handle		Appelez-nous	-
3	D7610602		Handle Door		Appelez-nous	-
4	D7609808		Pad, Handle		Appelez-nous	-
5	M0246258		Screw		Appelez-nous	-
6	C8814803		Bracket Lower Hinge		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
8	M0310715		Plug		Appelez-nous	-
8	M0310717		Plug		Appelez-nous	-
8	M0310719		Plug		Appelez-nous	-
8	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 7.39
8	M0310725		Plug		Appelez-nous	-
9	C8920501		Pad, Nameplate		Appelez-nous	-
10	B5744802		Shim		Appelez-nous	-
10	B5744803		Shim		Appelez-nous	-
10	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
11	D7728309		Door Ref W-t-tr18h		Appelez-nous	-
11	D7728313		Door Ref L-t-tr18h		Appelez-nous	-
11	D7728310		Door Ref C-t-tr18h		Appelez-nous	-
11	D7728311		Door Ref A-t-tr18h		Appelez-nous	-
11	D7728312		Door Ref G-t-tr18h		Appelez-nous	-
12	B5683507		Insulation		Appelez-nous	-
13	D7605104		Gasket Bisque		Appelez-nous	-
14	D7652306		Inner Dr Panel Ref		Appelez-nous	-
15	D7604410		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
19	M0203458		Screw		Appelez-nous	-
20	C8907212		Retainer-pkg		Appelez-nous	-
21	C8814901		Pin, Hinge K		Appelez-nous	-
22	M0219717		Screw		Appelez-nous	-
23	D7587808		Egg Tray		Appelez-nous	-
24	M0274049		Washer		Appelez-nous	-
25	M0274050		Washer		Appelez-nous	-
26	C8894802		Door Stop		Appelez-nous	-
27	M0203858		Screw		Appelez-nous	-
28	B8363501		Nut		Appelez-nous	-
29	B8361401		Nut		Appelez-nous	-
	NOTE:		Cic-4/p76213-2w Used In Canada		Appelez-nous	-
