Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 310310 Bracket, Control Appelez-nous -
2 310139 Panel, Control Appelez-nous -
3 328457 Microcomputer Appelez-nous -
4 309585 Button, Small (4) Appelez-nous -
5 309584 Button, Large (4) Appelez-nous -
6 310000 Barrier Appelez-nous -
7 310378 Screw, 6-18 X 3/8 (6) Appelez-nous -
8 310372 Relay Power (alternate) Appelez-nous -
8 310370 Relay, Power (alternate) Appelez-nous -
9 307634 Relay, Shunt Appelez-nous -
10 309622 Transformer Appelez-nous -
11 WP486754 Screw, 6-32 X 1/4 (8)   (Replaces: 246119) Special Order $ 7.21

12 328611 Switch, Start Appelez-nous -
13 310200 Spring, Push-to-start Switch Appelez-nous -
14 310141 Button, Push To Start Appelez-nous -
15 98106 Screw, Switch Mounting (2) Appelez-nous -
16 256936 Light, Indicator Appelez-nous -
17 310166 Frame, Control Panel Appelez-nous -
18 310167 End Cap, Control Panel Appelez-nous -
19 309170 Screw, 8-18bt X .88 (2) Appelez-nous -
20 328023 Resistor, 3 Ohm Appelez-nous -
21 246135 Screw, Ground (8d X 5/16) Appelez-nous -
22 WP488627 Screw, 8a X 1/2 (3)   (Replaces: 338156) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

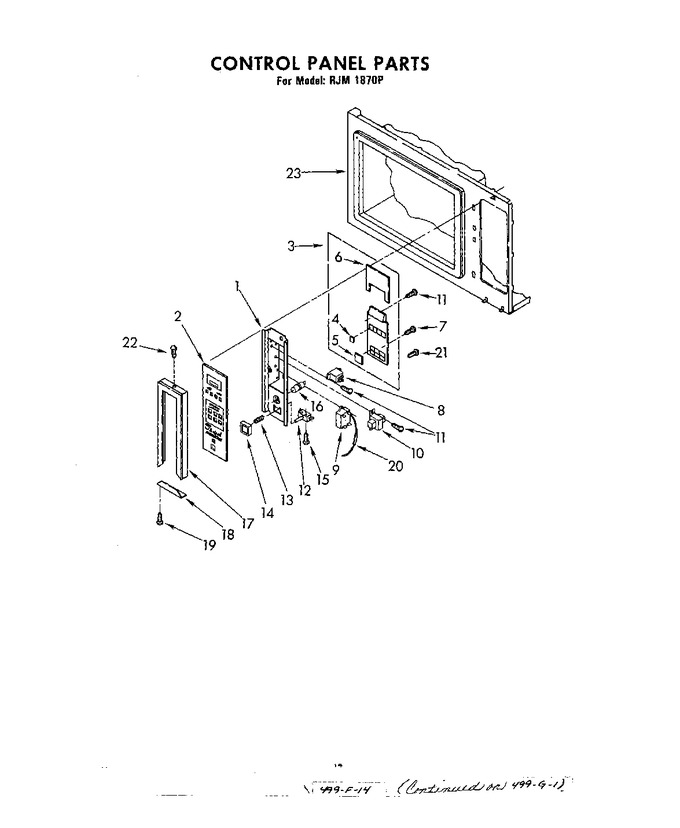

Diagram for RJM1870P
