01 - Compressor Compartment Parts


02 - Fz Door Parts

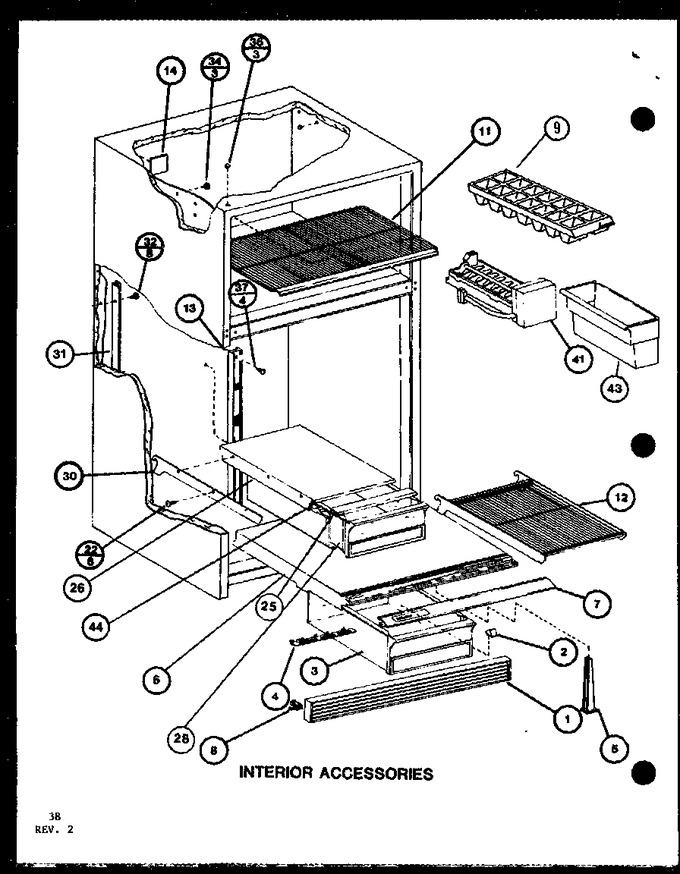

03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520505		Grille-toe		Appelez-nous	-
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581023		Pan, Crisper		Appelez-nous	-
4	D7587705		Slide Humidity		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616506		Crisper Top,assy		Appelez-nous	-
7	D7616617		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 43.06
11	D7580702		Shelf, Frz		Appelez-nous	-
12	D7654903		Shelf, Wire, Cantilever		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
14	D7604902		Cover		Appelez-nous	-
22	M0210418		Screw		Appelez-nous	-
25	C8913507		Trim, Front Shelf		Appelez-nous	-
26	D7698205		Top M.k		Appelez-nous	-
28	D7710514		Deli Drawer		Appelez-nous	-
30	D7600030		Side Plate Mk		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
31	D7599101		Ladder Side		Appelez-nous	-
32	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
34	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 7.39
36	M0310716		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
36	M0310720		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
41	Y00000000		See Note Add On Ice Maker -- (available From Sales, See Pages 48 & 49)		Appelez-nous	-
43	D7709904		Ice Bucket		Appelez-nous	-
44	D7718401		Seal Meat Pan		Appelez-nous	-
NI	R0179091		Crisper Top Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
