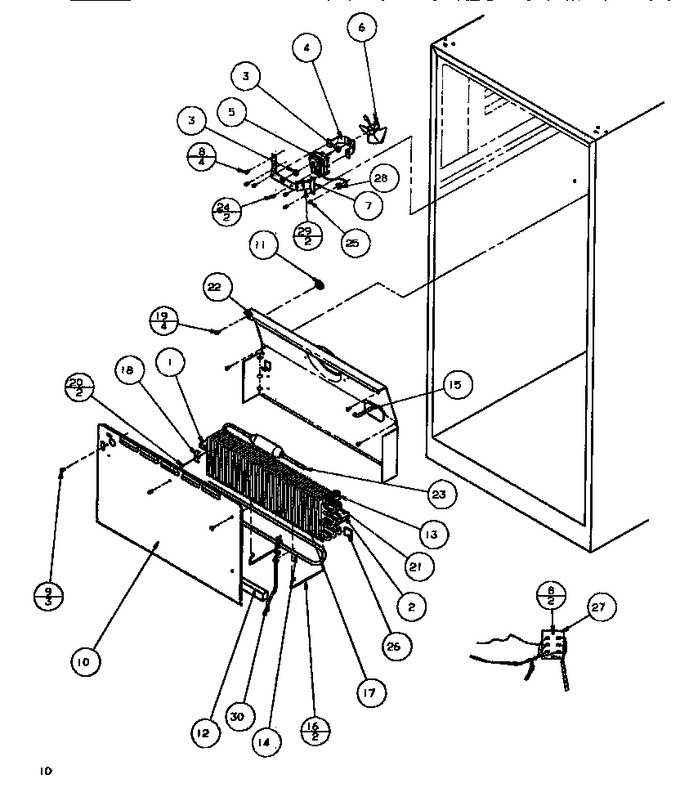

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8322902		Block Evap. Coil		Appelez-nous	-
2	B8361701		Block Evap Coil		Appelez-nous	-
3	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 41.55
4	C8881301		Brkt Evap Fan		Appelez-nous	-
5	WP10513804		Motor, Evap.   (Replaces: C8891602)				$ 231.08
6	C8927801		Blade, Evap Fan		Appelez-nous	-
7	D7524501		Brkt Evap Fan Shroud		Appelez-nous	-
8	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.54
9	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.57
10	D7874501		Evap Cover		Appelez-nous	-
11	A3138301		Grommet		Appelez-nous	-
12	A3189320		Gasket, Foam		Appelez-nous	-
13	C8898605		Kit, Defrost Thermostat		Appelez-nous	-
14	D7549704		Heater Evap		Appelez-nous	-
15	D7759002		Assy, Heat Exch.		Appelez-nous	-
16	C8952001		Clip		Appelez-nous	-
17	R0170032		Evaporator Assembly		Appelez-nous	-
18	A3253803		Clamp		Appelez-nous	-
19	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
20	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
21	C8898604		Thermostat, Defrost		Appelez-nous	-
22	D7691120		Shroud Evaporator Fan		Appelez-nous	-
23	WPW10339879		Tie   (Replaces: M0321202)				$ 7.47
24	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.88
25	M0251017		Screw		Appelez-nous	-
26	B8358502		Gasket		Appelez-nous	-
27	C8947902		Board-term		Appelez-nous	-
28	M0272803		Lock Washer		Appelez-nous	-
29	A1047901		Shim		Appelez-nous	-
30	10392701		Strap Heat Transf				$ 5.72
