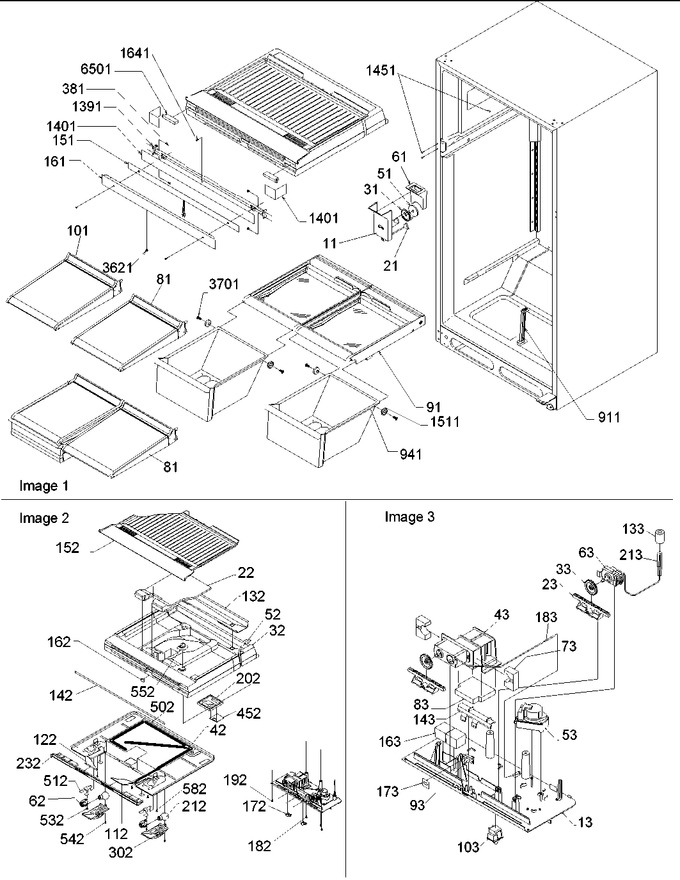

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10642103 | Cover, Mk Air Sply |
|
- | |||||
| 13 | 12035107 | Housing, Control |
|
- | |||||
| 21 | 10852401 | Gasket, Mt Kpr Duct |
|
- | |||||
| 22 | 10476402 | Insert, Drain Block |
|
- | |||||
| 23 | 10439601 | Rack, Control |
|
- | |||||
| 31 | 10479401 | Control, Mt. Kpr. Air Sup |
|
- | |||||
| 32 | 10996101 | Block-drain |
|
- | |||||
| 33 | 10442601 | Pinion, Control |
|
- | |||||
| 42 | 12035216 | Ref Top- E Ct |
|
- | |||||
| 43 | R0161072 | Assy, Damper Control |
|
- | |||||
| 51 | 12411301 | Insert, Mk Control |
|
- | |||||
| 52 | 10781106 | Harness,drain Block |
|
- | |||||
| 53 | 10428602 | Timer-defrost |
|
- | |||||
| 61 | 10479103 | Tunnel, Mt Kpr |
|
- | |||||
| 62 | D7845103 | Socket, Light |
|
- | |||||
| 63 | R0161084 | Assy, Fz Control |
|
- | |||||
| 73 | 10442801 | Insert,damper |
|
- | |||||
| 81 | 10926204Q | Assy, Shelf Hlf Gls |
|
- | |||||
| 83 | 10442901 | Insulation, Damper |
|
- | |||||
| 91 | 10698520Q | Assy, Crisp Frame |
|
- | |||||
| 93 | 10279202 | Switch, Heater |
|
- | |||||
| 101 | 10895709 | Shelf, Stationary |
|
- | |||||
| 103 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 35.18 | ||||
| 112 | 10467701 | Pipe, Light |
|
- | |||||
| 122 | 10467702 | Pipe, Light |
|
- | |||||
| 132 | 10435913 | Tray, Drip |
|
- | |||||
| 133 | 10673603 | Insulation, Cap |
|
- | |||||
| 142 | 10450834 | Membrane, Breaker |
|
- | |||||
| 143 | 10565101 | Shield, Wire |
|
- | |||||
| 151 | 10543609 | Heater-mullion |
|
- | |||||
| 152 | 10995004 | Freezer Bottom |
|
- | |||||
| 161 | 10433362B | Center Mullion-(black) Pnt |
|
- | |||||
| 162 | 10752201 | Cap-switch |
|
- | |||||
| 163 | 10900801 | Shield, Cont Hsg. |
|
- | |||||
| 172 | 10565401 | Knob, Control |
|
- | |||||
| 173 | 10877103 | Cover, Switch |
|
- | |||||
| 182 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.57 | ||||
| 183 | A3012542 | Tube-plastic |
|
- | |||||
| 192 | M0224128 | Screw |
|
- | |||||
| 202 | 10995201 | Insert-mk Air Sply |
|
- | |||||
| 212 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 213 | A3012543 | Tube-plastic |
|
- | |||||
| 232 | 10435514 | Frame, Ref Top Brk |
|
- | |||||
| 302 | 10508701 | Shield, Refrig. Light |
|
- | |||||
| 381 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 9.52 | |||||
| 452 | 10594901 | Gasket, Mk Air Supply |
|
- | |||||
| 502 | 10775302 | Heater, Ref Top |
|
- | |||||
| 512 | 10907501 | Brkt, Light |
|
- | |||||
| 532 | M0223328 | Screw |
|
- | |||||
| 542 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.43 | ||||
| 552 | 10993701 | Cap-air |
|
- | |||||
| 582 | WP489128 | Screw (Replaces: M0253516) |
|
$ 10.26 | |||||
| 911 | 10461901 | Post, Crisper Support |
|
Immediately | $ 23.27 | ||||
| 941 | Y10430111 | Pan-crisper |
|
- | |||||
| 1391 | 10433611 | Plate, Center Tap |
|
- | |||||
| 1401 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 1451 | M0311605 | Plug, Button (wht) |
|
- | |||||
| 1511 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 1641 | M0253916 | Screw |
|
- | |||||
| 3621 | M0211520 | Screw - Sm |
|
- | |||||
| 3701 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 9.71 | |||||
| 6501 | 10772301 | Insulation |
|
- | |||||
| NI | 10785802 | Harness, Control |
|
- |
