SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assy


03 - Door Hinges, Freezer & Accessories


04 - Evaporator & Fan Motor Assy


05 - Ice Maker Assy & Parts


06 - Interior Cabinet & Drain Block Assy


07 - Ladders, Lower Cabinet & Rollers

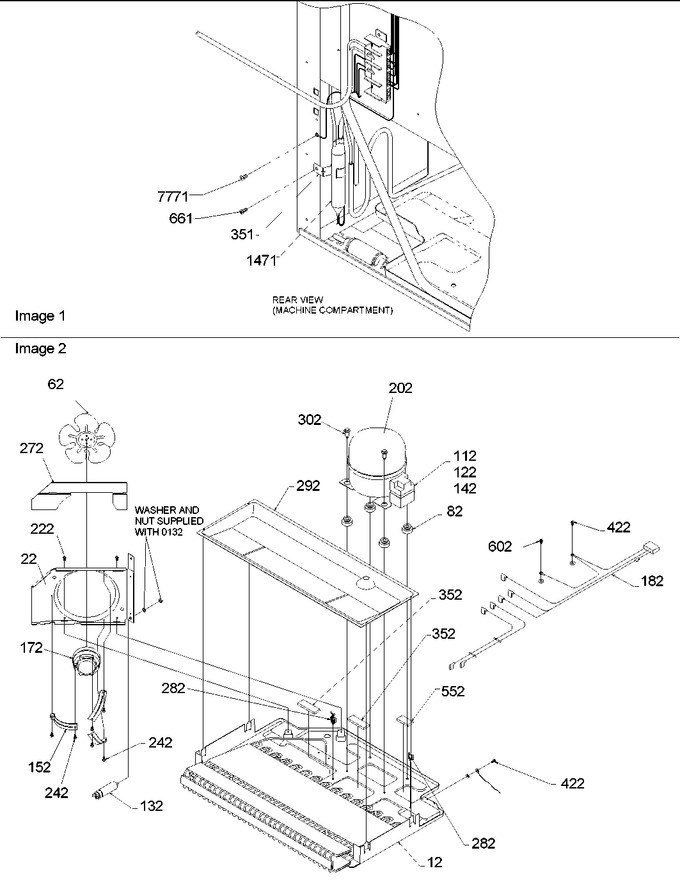

08 - Machine Compartment


09 - Shelving & Crisper Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10481220		Assy, Cond Pan		Appelez-nous	-
22	10426911		Cond Fan Shrd-e Ct		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 6.80
112	10377019		Overload- 4tm		Appelez-nous	-
122	10097206		Relay		Appelez-nous	-
132	10958303		Capacitor		Appelez-nous	-
142	10757301		Cover, Terminal		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	10670403		Motor, Condenser		Appelez-nous	-
182	10968601		Harness, Mach Comp		Appelez-nous	-
202	W10309997		Compressor Tc Tpa1410y   (Replaces: 12049713)				$ 525.54
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.43
242	M0223816		Screw, Tr				$ 5.27
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427405		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
351	10547001		Clip, Drier		Appelez-nous	-
352	B5759644		Gasket		Appelez-nous	-
422	WP489399		Screw, Ca   (Replaces: M0239216)				$ 6.57
552	B5759648		Gasket		Appelez-nous	-
602	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
661	M0227217		Screw, Sm		Appelez-nous	-
1471	WPB2150504		Drier   (Replaces: B2150504)				$ 123.28
7771	WP489399		Screw, Ca   (Replaces: M0239216)				$ 6.57

    View Diagram in Separate Window       Print Part List
