View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts

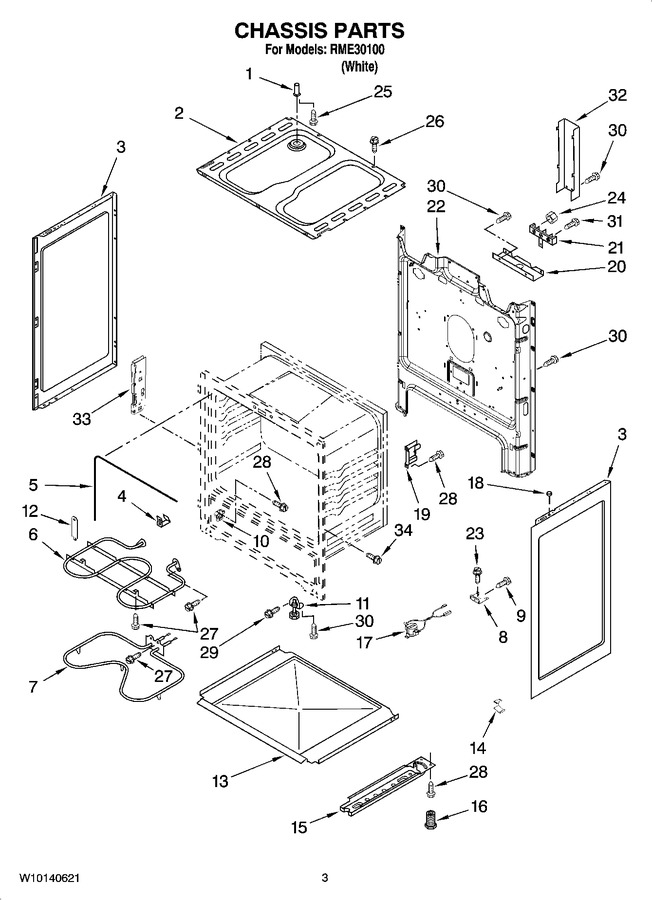

03 - Chassis Parts
04 - Drawer Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 3169143) |
|
$ 93.87 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 236.07 | |||||
| 3 | WPW10575396 | Panel, Side (2) (white) (Replaces: 8053830) |
|
$ 182.19 | |||||
| 4 | 98005642 | Clip, Thermobulb (Replaces: 313382) |
|
Immediately | $ 78.37 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: W10129032) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 172.30 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 9758541) |
|
Immediately | $ 64.67 | ||||
| 8 | 9756355 | Bracket, T-stat |
|
- | |||||
| 9 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 10 | WPW10114344 | Glide, Drawer Front (Replaces: W10114344) |
|
Immediately | $ 7.71 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 78.41 | |||||
| 12 | 9761517 | Clip, Door Mntg (2) |
|
$ 43.30 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 93.92 | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | 9757158 | Thermostat, Safe |
|
Immediately | $ 216.05 | ||||
| 18 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 76.31 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 15.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | 9756918 | Block, Terminal |
|
$ 43.01 | |||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP489491 | Screw (Replaces: 3196566) |
|
$ 6.57 | |||||
| 24 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.77 | |||||
| 25 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 7.25 | |||||
| 26 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 27 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.60 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 16.74 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 32 | WPW10326122 | Box, Cover (Replaces: 9758283) |
|
$ 125.64 | |||||
| 33 | W10647259 | Brkt-hinge (Replaces: 9760407) |
|
Immediately | $ 8.39 | ||||
| 34 | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 103.60 | |||||
| 34 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 34 | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 52.37 |
