01 - Compressor Compartment Parts


02 - Fz Door Parts

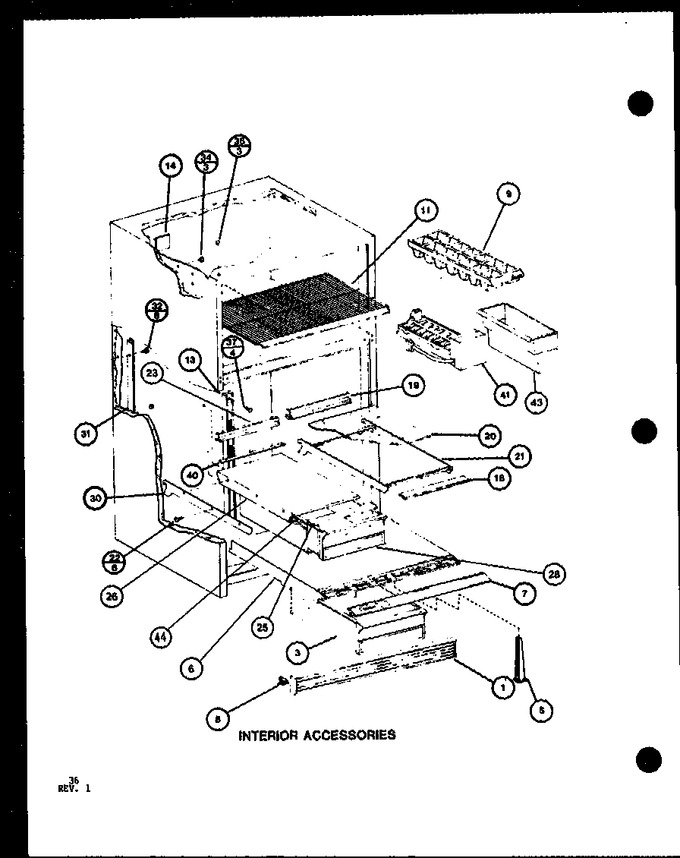

03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520502		Grille-toe		Appelez-nous	-
3	D7581010		Crisper Pan		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616506		Crisper Top,assy		Appelez-nous	-
7	D7616603		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
11	D7580702		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
18	C8913501		Trim, Shelf A		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421220		Glass Shelf A		Appelez-nous	-
21	D7602303		Frame, Cantilever		Appelez-nous	-
22	M0210418		Screw		Appelez-nous	-
23	C8831808		Trim Shelf		Appelez-nous	-
25	C8913501		Trim, Shelf A		Appelez-nous	-
26	D7698205		Top M.k		Appelez-nous	-
28	D7710503		Deli, Drawer		Appelez-nous	-
30	D7600030		Side Plate Mk		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
31	D7599101		Ladder Side		Appelez-nous	-
32	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
34	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 7.39
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
36	M0310720		Plug		Appelez-nous	-
36	M0310716		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
40	M0275163		Tape Per Roll		Appelez-nous	-
41	D7567104		Ice Maker Assy		Appelez-nous	-
44	D7718401		Seal Meat Pan		Appelez-nous	-
NI	R0179082		Crisper Assy		Appelez-nous	-
NI	D7714602		Glass Shelf Assy		Appelez-nous	-
NI	D7714604		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
NI	D7621104		Ice Pan		Appelez-nous	-
