02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Air Flow


09 - Control, Lit/optional

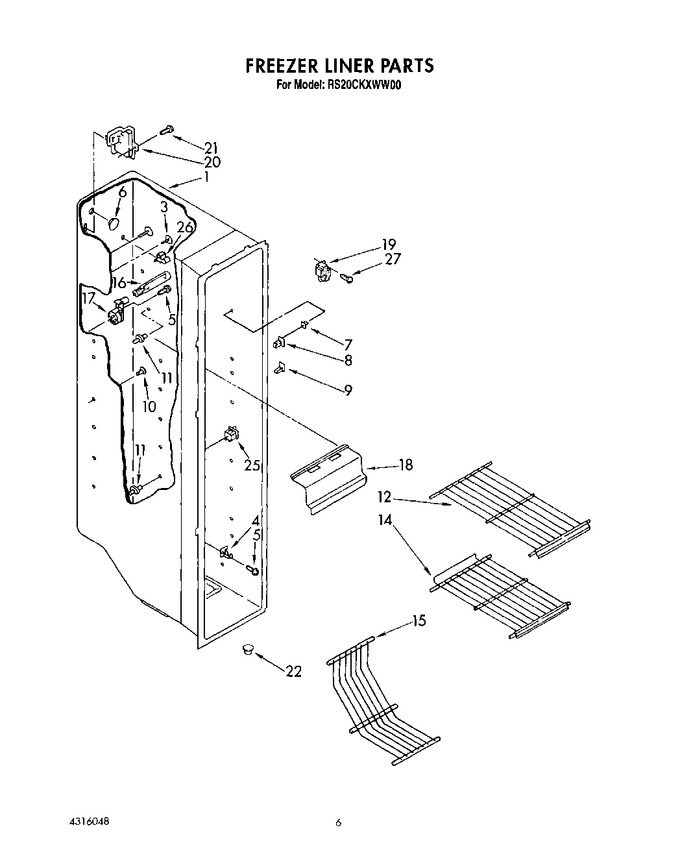

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	944795		Hole Plug		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.23
4	1108436		Evaporator, Support		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support Stud (8)		Appelez-nous	-
8	946356		Stud (3)		Appelez-nous	-
9	1106982		Stud (3)		Appelez-nous	-
10	1110779		Grommet, (6)		Appelez-nous	-
11	819091		Saddle Stud (left Side)   (Replaces: 946358)				$ 37.49
11	819091		Saddle Stud (right Side)   (Replaces: 946357)				$ 37.49
12	1106979		Shelf		Appelez-nous	-
14	1106980		Shelf (3)		Appelez-nous	-
15	2148400		Trivet		Appelez-nous	-
16	WP548049		Light Bulb   (Replaces: 548049)				$ 81.60
17	1108630		Socket Assembly		Appelez-nous	-
18	1108445		Lens, Light		Appelez-nous	-
19	942842		Terminal Block		Appelez-nous	-
20	1129915		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.45
22	942768		Fitting, Drain		Appelez-nous	-
25	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 35.18
26	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.85
27	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.62
27	WP489478		Screw   (Replaces: 489242)				$ 7.36
