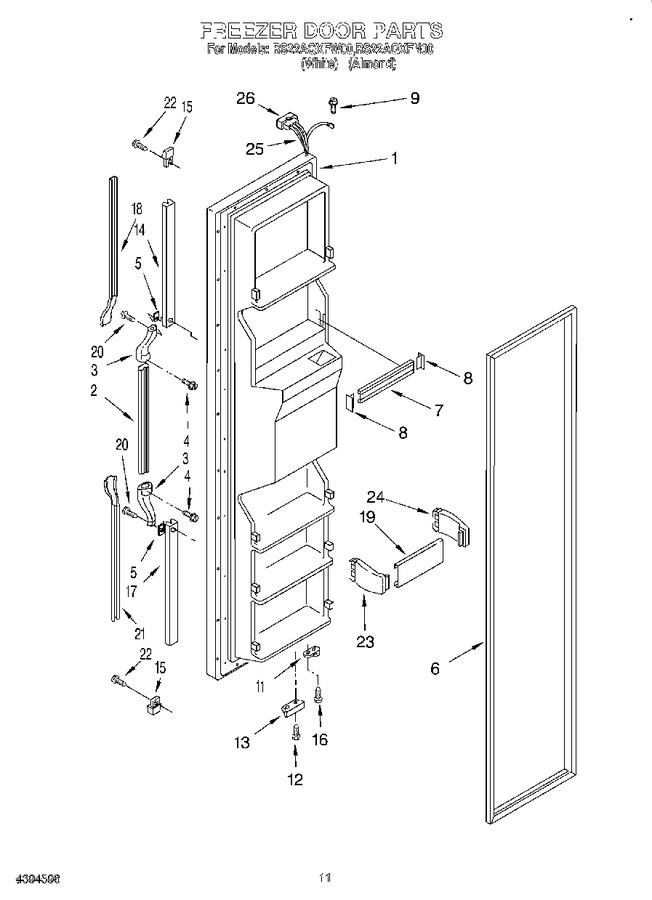

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194557W		Freezer Door (white)		Appelez-nous	-
1	2194557N		Freezer Door (almond (includes Item No.6 And Dispenser Front Parts))		Appelez-nous	-
2	2194767N		Handle, Center (almond)		Appelez-nous	-
2	2194767W		Handle, Center (white)		Appelez-nous	-
3	1119359		End Cap, Center Handle		Appelez-nous	-
4	489022		Screw		Appelez-nous	-
5	935075		Shim		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 291.24
7	WPW10307490		Trim, Door Shelf   (Replaces: 2182785)			Immediately	$ 21.84
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
9	WP488234		Screw   (Replaces: 489422)				$ 6.37
11	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	2194771		Retainer, Top		Appelez-nous	-
15	2156220		End Cap (2)		Appelez-nous	-
16	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
17	2194770		Retainer, Bottom		Appelez-nous	-
18	2194774N		Extension, Top (almond)		Appelez-nous	-
18	2194774W		Extension, Top (white)		Appelez-nous	-
19	2182786		Door, Shelf (4)		Appelez-nous	-
20	WP489463		Screw   (Replaces: 489463)				$ 7.43
21	2194773W		Extension, Bottom (white)		Appelez-nous	-
21	2194773N		Extension, Bottom (almond)		Appelez-nous	-
22	489075		Screw		Appelez-nous	-
23	2156005		End Cap (left)		Appelez-nous	-
24	WP2195916K		End Cap (right)   (Replaces: 2156002)			Immediately	$ 11.86
25	2183713		Wire Assembly		Appelez-nous	-
26	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
