Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 985468 Escutcheon, Meat Pan Control Appelez-nous -
3 984102 Slide, Meat Pan Control Special Order $ 5.02

4 992358 Pad, Foam Appelez-nous -
5 1108433 Ladder, Shelf Appelez-nous -
6 W10759522 Screw (2)   (Replaces: 486298) Special Order $ 7.42

7 WP2256085 Bracket, Retainer   (Replaces: 1123919) Special Order $ 32.49

8 WP488488 Screw (2)   (Replaces: 489290) Special Order $ 7.67

9 WPW10151374 Air Diffuser Assembly   (Replaces: 2161251) In-Stock Immediately $ 94.29

10 2152019 Cover, Air Diffuser Special Order $ 81.30

11 2150331 Cover, Conduit Special Order $ 23.06

12 WP488729 Screw   (Replaces: 487539) In-Stock Immediately $ 7.45

13 2215823 Clip, Air Duct   (Replaces: 842534) Special Order $ 9.85

14 1118315 Lens Appelez-nous -
15 4388538 Stud   (Replaces: 1110718) In-Stock Immediately $ 29.57


    View Diagram in Separate Window     Print Icon   Print Part List

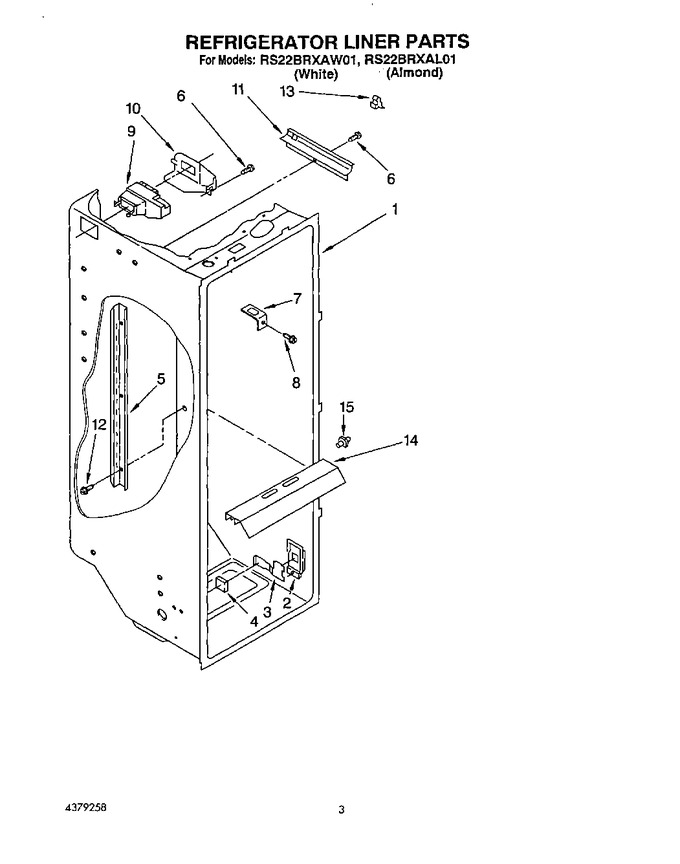

Diagram for RS22BRXAW01
