SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

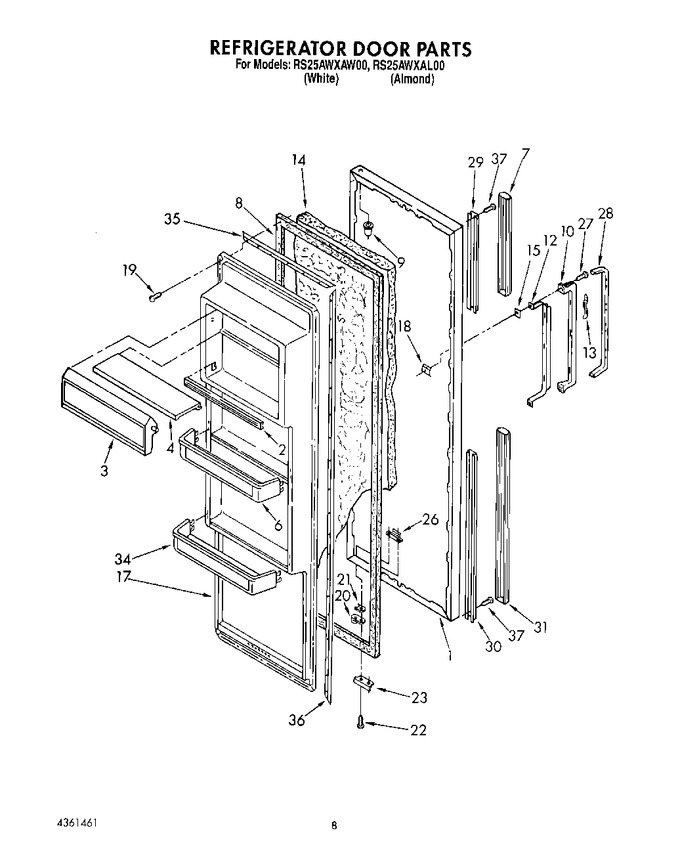

1	2152458		Refrigerator Door (also Order Item 39) (white)		Appelez-nous	-
1	2152459		Refrigerator Door (also Order Item 39) (almond)		Appelez-nous	-
2	WP2201061		Trim, Door Shelf   (Replaces: 2163439)				$ 124.32
3	2163435		Compartment Door		Appelez-nous	-
4	1116707		Shelf, Compartment		Appelez-nous	-
6	2163437		Trim, Door Shelf		Appelez-nous	-
7	2163432		Extension (top) (white)		Appelez-nous	-
7	1127470		Extension (top) (for Almond Model)		Appelez-nous	-
8	1127307		Door Gasket, Magnetic		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	2147470		Handle (for White Model)		Appelez-nous	-
10	1127464		Handle (for Almond Model)		Appelez-nous	-
12	1127465		Reinforcement, Handle		Appelez-nous	-
13	849445		Clip, Handle		Appelez-nous	-
14	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
15	2147097		Shim, Handle		Appelez-nous	-
17	2164045		Panel, Interior		Appelez-nous	-
18	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
20	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 29.74
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
22	WP489069		Screw   (Replaces: 488938)			Immediately	$ 8.40
23	1115906		Bracket, Door Stop (black)		Appelez-nous	-
23	988420		Bracket, Door Stop (chrome)		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
27	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
28	2147581		Insert, Handle		Appelez-nous	-
29	2147895		Retainer (top)		Appelez-nous	-
30	2147896		Retainer (bottom)		Appelez-nous	-
31	1127473		Extension (bottom) (for Almond Model)		Appelez-nous	-
31	2147471		Extension (bottom) (for White Model)		Appelez-nous	-
34	2163438		Trim, Shelf				$ 29.80
35	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
36	1118302		Gasket Retainer		Appelez-nous	-
37	WP489478		Screw   (Replaces: 489242)				$ 8.18
