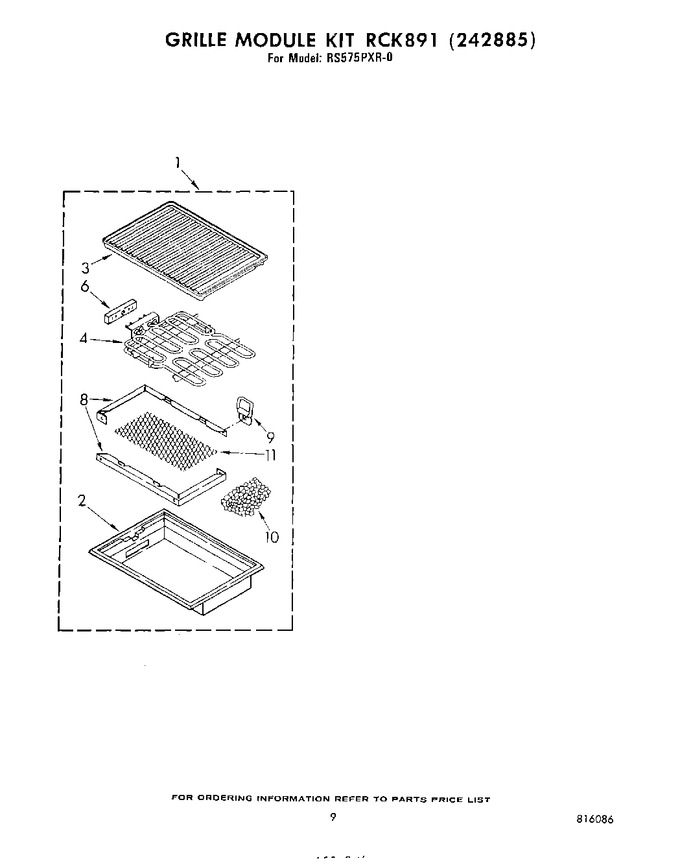

07 - Grille Kit Rck891 , Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242885		Grill Kit, Complete		Appelez-nous	-
2	877548		Pan, Grill		Appelez-nous	-
3	877549		Rack, Grill (2)		Appelez-nous	-
4	877541		Unit, Dual (2200w)		Appelez-nous	-
6	868437		Receptacle, Male		Appelez-nous	-
6	868878		Pushnut, 1/4``		Appelez-nous	-
8	877542		Frame, Basket (2)		Appelez-nous	-
9	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	877543		Handle, Basket (2)		Appelez-nous	-
10	868460		Rocks, Lava (4 Lbs.)		Appelez-nous	-
11	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
11	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
11	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
11	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
11	261888		New Avocado		Appelez-nous	-
11	261886		Coffee		Appelez-nous	-
11	261890		Harvest Gold		Appelez-nous	-
11	285006		Paint, Spray 13 Oz. (black)				$ 53.90
11	350942		Primer (white)   (Replaces: 206922)				$ 84.73
11	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
11	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
11	978883		Almond (uncut)		Appelez-nous	-
11	261889		New Avocado (uncut)		Appelez-nous	-
11	261887		Coffee (uncut)		Appelez-nous	-
11	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
11	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
11	261748		Touch-up, Oven (1 Oz.)		Appelez-nous	-
11	261582		Grease		Appelez-nous	-
11	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 54.98
11	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 54.98
11	WPW10208653		Insulation, Moisture Barrier   (Replaces: 866187)			Immediately	$ 54.98
11	WPW10208653		Insulation, Door   (Replaces: 241531)			Immediately	$ 54.98
11	834470		Insulation, Oven Back		Appelez-nous	-
11	834469		Insulation, Oven Wrapper		Appelez-nous	-
11	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
11	261891		Harvest Gold (uncut)		Appelez-nous	-
11	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
11	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
11	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
11	877609		Screen, Basket (2)		Appelez-nous	-
11	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
11	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
11	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
11	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
11	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
11	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
11	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
11	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
11	242831		Wire (14 Ga. 200 C Red)				$ 342.23
11	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
11	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
11	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	877692		Side Panel Kit, White (rck952w)		Appelez-nous	-
	LIT816086		List, Repair Parts		Appelez-nous	-
	877703		Side Panel Kit, Almond (rck952n)		Appelez-nous	-
	LIT816052		Tech Sheet		Appelez-nous	-
	LIT877750		Installation Instructions		Appelez-nous	-
	LIT816021		Guide, Use & Care		Appelez-nous	-
	LIT877952		Guide, Cooking		Appelez-nous	-
	877691		Backguard Kit (rck950)		Appelez-nous	-
	877959		Solid Element Module		Appelez-nous	-
	877860		Surface Unit Module, 2-6``		Appelez-nous	-
	242903		Surface Unit Module, 1-6`` 1-8``		Appelez-nous	-
	242886		Rotisserie Kit (rck 892)				$ 243.50
	261950		Griddle Kit (rck 884)		Appelez-nous	-
	877705		Side Panel Kit, Coffee (rck952c)		Appelez-nous	-
	877704		Side Panel Kit, Gold (rck952g)		Appelez-nous	-
