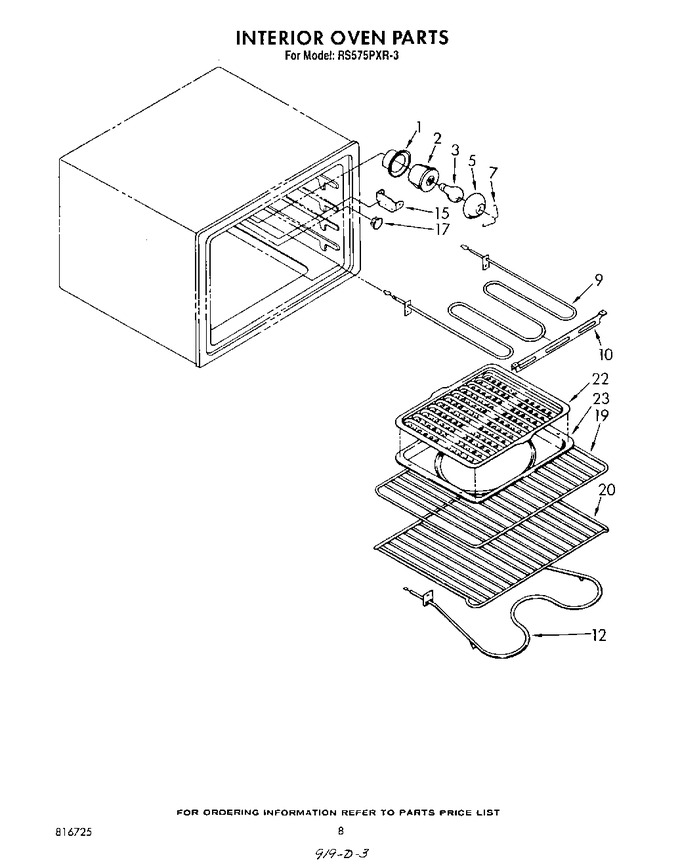

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	486146		Screw, 10-24 X1/2 (2)				$ 12.83
1	877802		Cup, Light		Appelez-nous	-
2	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.80
3	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
5	877804		Lens, Light		Appelez-nous	-
7	877805		Retainer, Lens		Appelez-nous	-
9	261968		Unit, Broiler (208v)		Appelez-nous	-
9	865934		Unit, Broiler ((240v))		Appelez-nous	-
9	486146		Unit, Broiler (screw, 10-24 X 1/2 (2))				$ 12.83
10	866429		Hanger, Broil Unit		Appelez-nous	-
10	486146		Screw, 10-24 X1/2 (2)				$ 12.83
12	WP865940		Unit Bake (alternate (240v))   (Replaces: 868964)				$ 138.75
12	WP865940		Unit Bake (alternate (240v))   (Replaces: 868963)				$ 138.75
12	261967		Unit, Bake (alternate (208v))		Appelez-nous	-
12	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
15	865959		Bracket, Thermo Bulb		Appelez-nous	-
15	486146		Screw, 10-24 X 1/2				$ 12.83
17	142017		Button, Plug 1/2 (2)		Appelez-nous	-
19	865983		Rack, Oven Regular		Appelez-nous	-
20	877951		Rack, Oven (offset)		Appelez-nous	-
22	4396923		Grill, Broiler Pan   (Replaces: 866219)			Immediately	$ 54.64
23	866218		Pan, Broiler		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
