SELECT A DIAGRAM

02 - Oven


03 - Control Panel

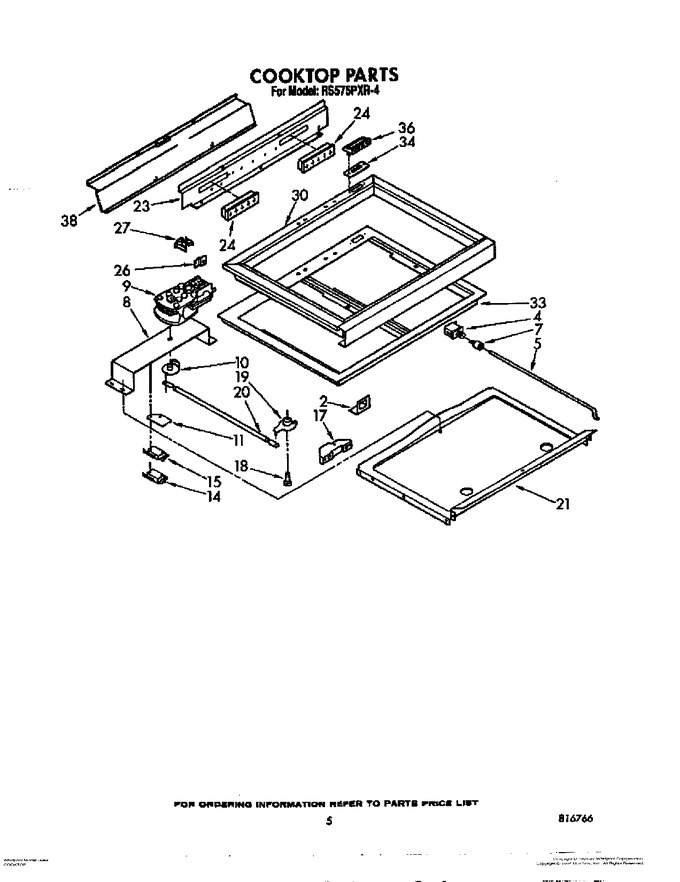

04 - Cooktop


05 - Door And Drawer


06 - Interior Door


07 - Grille Kit Rck891-1, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	865961		Bracket, Door Latch Switch		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2		Appelez-nous	-
4	WP8283288		Switch, Door Latch   (Replaces: 865677)			Immediately	$ 104.24
5	877523		Push Rod, Switch		Appelez-nous	-
7	877562		Rod End, Switch		Appelez-nous	-
8	816114		Support, Latch Motor		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2		Appelez-nous	-
9	816113		Motor, Door Latch		Appelez-nous	-
10	816107		Pin, Spring		Appelez-nous	-
10	816112		Cam, Door Latch		Appelez-nous	-
11	834905		Insulator, Limit Switch (2)		Appelez-nous	-
14	877877		Switch Limit (lower) (alternate)		Appelez-nous	-
14	834906		Switch Limit (lower) (alternate)		Appelez-nous	-
15	868280		Switch Limit (upper) (alternate)		Appelez-nous	-
15	877878		Switch Limit (upper) (alternate)		Appelez-nous	-
15	834903		Switch Limit (upper) (screw, 4-40 X 1-1/4 (2))		Appelez-nous	-
17	877614		Housing, Latch		Appelez-nous	-
17	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
17	816058		Washer (2)		Appelez-nous	-
18	877884		Axle, Latch		Appelez-nous	-
19	816105		Latch, Door		Appelez-nous	-
20	942591		Bar Tie   (Replaces: 816106)				$ 213.94
21	680363		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
21	816079		Panel, Subtop		Appelez-nous	-
23	868833		Shield, Wire		Appelez-nous	-
23	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
23	WP486579		Screw, 8-32 X 3/16 (10)   (Replaces: 866466)				$ 7.10
24	868420		Receptacle, Porcelain (2)		Appelez-nous	-
26	868421		Clip, Receptacle (4)		Appelez-nous	-
26	868959		Screw, 10-24 X 1/4 (4)		Appelez-nous	-
27	816083		Terminal Female		Appelez-nous	-
30	877714		Frame, Cooktop		Appelez-nous	-
33	868430		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
33	868959		Screw, 10-24 X 1/4 (6)		Appelez-nous	-
33	877534		Cooktop, Modular		Appelez-nous	-
34	816081		Gasket, Vent Tube		Appelez-nous	-
36	816082		Cover, Vent		Appelez-nous	-
36	877733		Clip, Retainer (2)		Appelez-nous	-
38	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
38	816080		Shield, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
