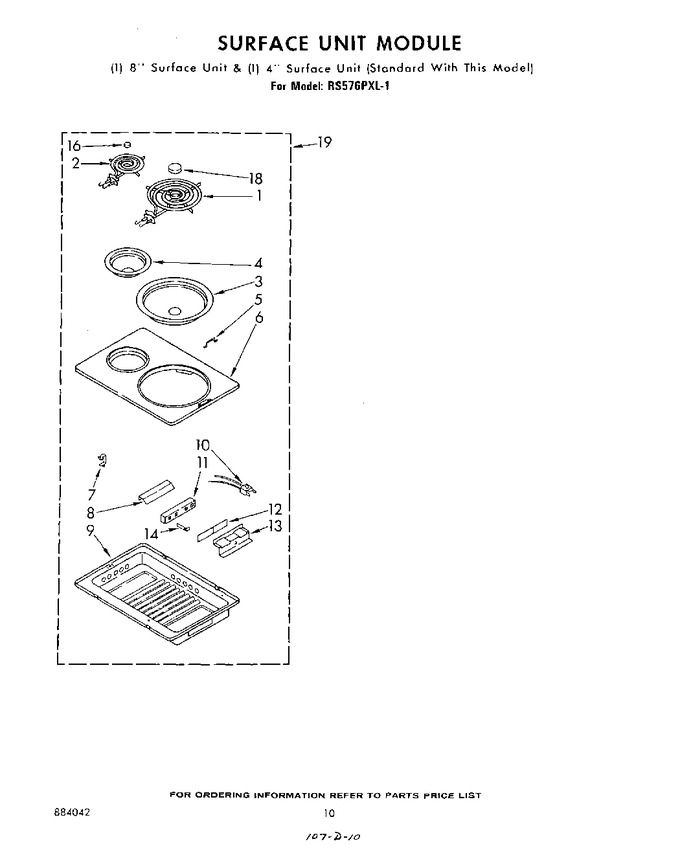

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660533		Unit, Surface (8``) (alternate)   (Replaces: 868449)			Immediately	$ 40.21
1	WP660533		Unit, Surface (8``) (alternate)   (Replaces: 866447)			Immediately	$ 40.21
2	868448		Unit, Surface (4``) (1)		Appelez-nous	-
3	W10196405RW		Bowl, Surface Unit (8``) (1) (alternate)   (Replaces: 834754)			Immediately	$ 19.64
3	W10196405RW		Bowl, Surface Unit (8``) (1) (alternate)   (Replaces: 877546)			Immediately	$ 19.64
4	868446		Bowl, Surface Unit (4``) (1)		Appelez-nous	-
5	868450		Handle, Cooktop		Appelez-nous	-
6	868463		Cooktop (4/8)		Appelez-nous	-
6	868382		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
7	868466		Clamp, Wire		Appelez-nous	-
8	868686		Shield, Wire		Appelez-nous	-
9	877544		Pan, Surface Unit		Appelez-nous	-
10	330031		Receptacle & Wire Assembly   (Replaces: 877610)			Immediately	$ 17.93
11	868437		Receptacle, Male		Appelez-nous	-
11	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
11	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
12	868814		Insulator, Receptacle		Appelez-nous	-
13	WP486754		Screw, 6-32 X 5/16 (3)   (Replaces: 680406)				$ 7.21
13	866272		Pushnut, 1/8		Appelez-nous	-
13	868440		Bracket, Ground		Appelez-nous	-
14	868438		Terminal, Male (4)		Appelez-nous	-
16	868522		Medallion (for 8`` Unit)		Appelez-nous	-
18	868911		Medallion (for 4`` Unit)		Appelez-nous	-
19	242918		Surface Unit Module (complete)		Appelez-nous	-
