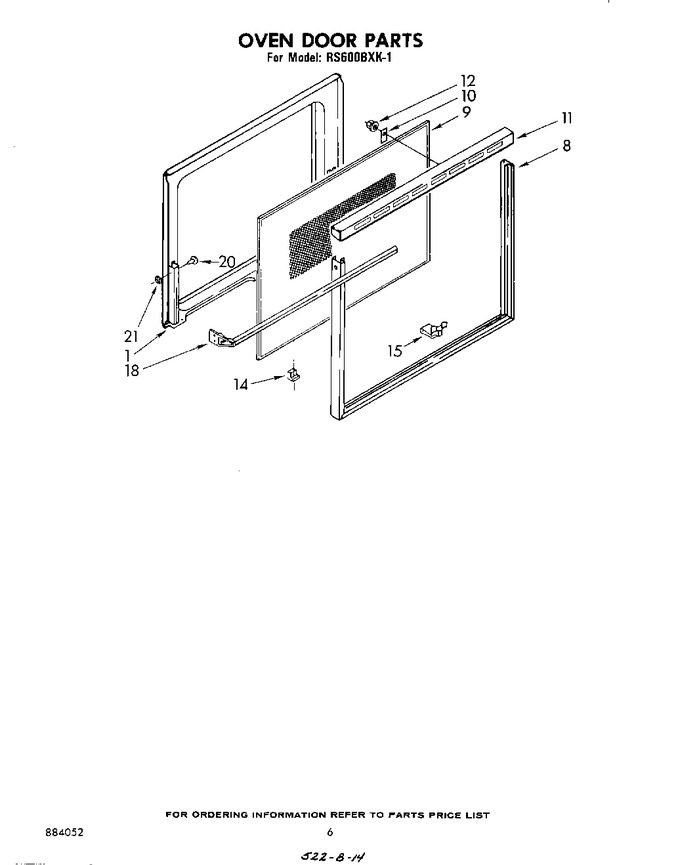

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329688		Liner, Door		Appelez-nous	-
1	WP912618		Screw (4)   (Replaces: 308541)				$ 7.47
1	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
8	310427		Frame, Door 30``		Appelez-nous	-
9	00573829		Glass, Outer Pano   (Replaces: 310655)			Immediately	$ 27.48
10	310705		Hold-down, Glass		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
11	310784		Top, Door Frame		Appelez-nous	-
12	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.42
14	309152		Cushion, Glass (3)		Appelez-nous	-
15	WP90296		Clip (2)   (Replaces: 90296)				$ 7.42
15	310706		Clip, Glass (10)		Appelez-nous	-
18	WP912618		Screw (4)   (Replaces: 308541)				$ 7.47
18	312721		Handle, Oven Door		Appelez-nous	-
18	311506		Clip (2)		Appelez-nous	-
20	312223		Pin, Wedge (2)		Appelez-nous	-
21	311896		Pushnut (2)		Appelez-nous	-
