SELECT A DIAGRAM

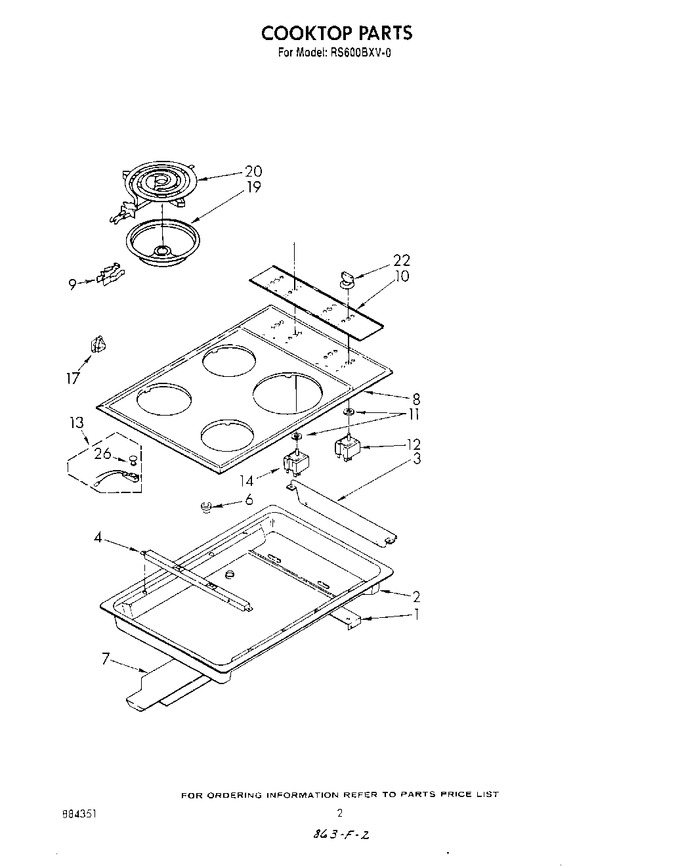

02 - Cooktop


03 - Oven Door


04 - Control Panel , Lit/optional


05 - Oven


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310718		Support, Burner Box (2)		Appelez-nous	-
1	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.45
2	311019		Box, Burner		Appelez-nous	-
3	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.45
3	310716		Shield, Switch		Appelez-nous	-
4	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.45
4	310717		Support, Cooktop		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	3147565		Cover, Top Rear		Appelez-nous	-
7	312318		Screw,		Appelez-nous	-
7	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.45
8	3148038		Cooktop, Brushed Chrome		Appelez-nous	-
8	166681		Screw		Appelez-nous	-
9	WP313808		Screw (4)   (Replaces: 313808)				$ 7.47
9	330031		Clip, Receptacle (4)   (Replaces: 3147829)			Immediately	$ 17.93
10	3148705		Panel, Control		Appelez-nous	-
11	309839		Seal, Switch		Appelez-nous	-
12	W10900107		Switch, Infinite 6`` Burner (3)   (Replaces: 3148948)			Immediately	$ 51.87
12	155023		Screw (4)			Immediately	$ 7.91
13	313462		Indicator, Light (incudes No. 26)		Appelez-nous	-
14	3148947		Switch, Infinite 8`` Burner		Appelez-nous	-
14	155023		Screw (4)			Immediately	$ 7.91
17	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.47
19	W10196405RW		Reflector Pan (8``)   (Replaces: 3150247)			Immediately	$ 19.64
19	WPW10196406		Reflector Pan 6`` (3)   (Replaces: 3150246)			Immediately	$ 12.42
20	WP660532		Unit, Surface 6``   (Replaces: 660528)			Immediately	$ 45.10
20	WP660533		Unit, Surface 8``   (Replaces: 660530)			Immediately	$ 40.21
22	3148161		Knob, Control (4)		Appelez-nous	-
26	313602		Lens, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
